Fig. 1
- ID
- ZDB-FIG-250714-22
- Publication
- Berger et al., 2024 - Sept10 and sept12 are expressed in specific proliferating cells in zebrafish brain
- Other Figures
- All Figure Page
- Back to All Figure Page

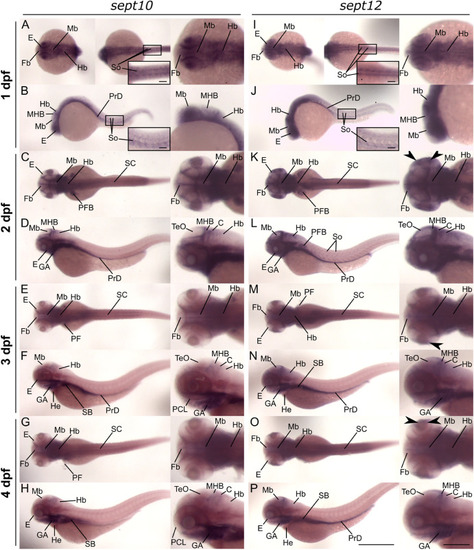

Expression pattern of sept10 and sept12 revealed by RNA WISH in zebrafish embryos and early larvae. Zebrafish embryos stained for sept10 or sept12 expression by RNA WISH at 1–4 dpf shown in dorsal (upper image) or lateral (lower image) view. Magnified views of the head structure are shown as enlarged images. Boxed images show somites (So) at a higher magnification. A-H: larvae exhibited early sept10 expression in anterior ventral structures, brain and in single So at 1 and 2 dpf. At 3 and 4 dpf expression was detectable mostly in the gill arches (GA) and in the brain. I - P: sept12 expression was visible in ventral structures and single somites (So) at 1 dpf and elevated in brain and pronephric duct (PrD) at 2 dpf. Expression in pronephric duct (PrD) persisted at later stages, while brain expression was only weakly detectable at 3 and 4 dpf and persisted only at the mid-hindbrain boundary (MHB). K, M and O: Arrowheads show staining around the lens in the developing eye. See list for abbreviations. Scale bars: whole mounts: 500 μm, boxed images: 50 μm, enlarged head views: 200 μm. |
| Genes: | |
|---|---|
| Fish: | |
| Anatomical Terms: | |
| Stage Range: | Prim-5 to Day 4 |
Reprinted from Gene expression patterns : GEP, , Berger, C., Charlotte Kreß, J.K., Helmprobst, F., Sept10 and sept12 are expressed in specific proliferating cells in zebrafish brain, 119387119387, Copyright (2024) with permission from Elsevier. Full text @ Gene Expr. Patterns
