Fig. 1

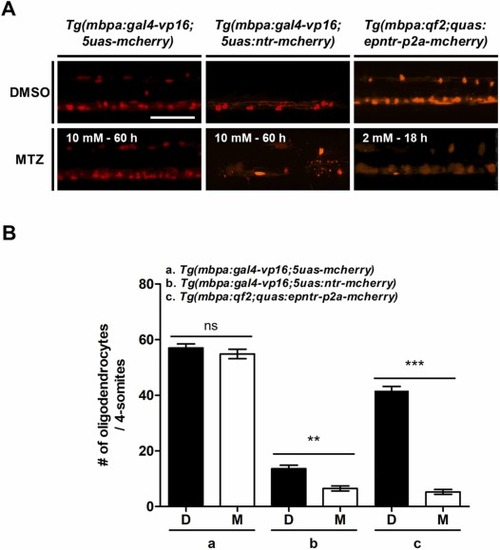

The transgenic zebrafish model in the present study has superior oligodendrocyte ablation efficiency. (A) All images are lateral views of the spinal cord of transgenic zebrafish larvae, 6 and 8 days post-fertilization (dpf), anterior to the left and dorsal to the top. (B) In the spinal cord, fluorescence indicates mbpa:mCherry+ cells (oligodendrocytes, OLs). The graph represents the number of OLs in each 4-somite area. The experiment was repeated thrice (n = 10 per group). The data are presented as the mean ± SD. P-values were calculated using an unpaired Student’s t-test. Significance is indicated by **P < 0.01 and ***P < 0.001 vs. DMSO. ns: not significant. Scale bar: 200 μm.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	c264Tg; km5Tg km18Tg; km19Tg
Condition:	chemical treatment by environment: metronidazole
Observed In:	spinal cord oligodendrocyte
Stage:	Days 7-13

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Biomed. Pharmacother.
