Fig. 4

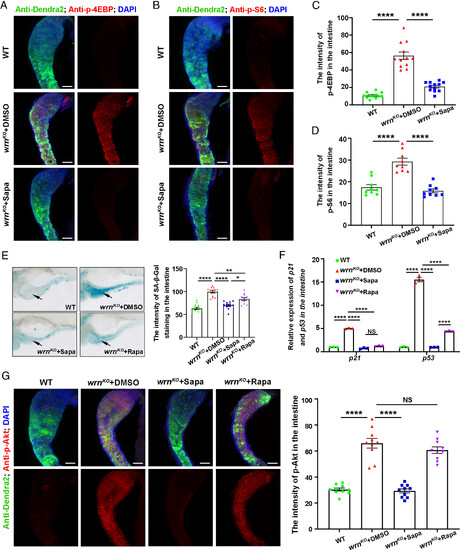

Sapanisertib may attenuate the aging phenotypes of the wrnKO mutant by inhibiting mTORC1/2 signaling. (A?D) Confocal projection images showing the expression of p-4EBP (A, red), p-S6 (B, red), Dendra2 (green), and DAPI (blue) in the intestine of Tg(fabp2:Dendra2-NTR) among WT, wrnKO + DMSO, and wrnKO + Sapa groups at 8dpf. Quantification of the intensity of p-4EBP (C, n = 12 for each group) and p-S6 (D, n = 9 for each group). (E) Representative image of SA-?-Gal staining and quantification of the intensity of SA-?-Gal staining in the intestine at 8 dpf (n = 11 to 14 for each group). Arrows indicate the intestine region. (F) qPCR analysis of age-related gene expression (p21 and p53) in intestinal samples at 8 dpf (n = 40 for each group). (G) Confocal projection images showing the expression of p-Akt (red), Dendra2 (green), and DAPI (blue) in the intestine of Tg(fabp2:Dendra2-NTR) among WT, wrnKO+DMSO, wrnKO+Sapa, and wrnKO+Rapa groups at 8dpf. Quantification of the intensity of p-Akt (n = 10 for each group). (Scale bar, 50 ?m.) Data are presented as mean ± SEM. Significance was determined by one-way ANOVA. NS, not significant; *P < 0.05; **P < 0.01; ****P < 0.0001. Rapa, rapamycin.

Expression Data
Genes:
Antibodies:
Fish:
Conditions:
Anatomical Term:
Stage: Days 7-13

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Conditions:
Observed In:
Stage: Days 7-13

Phenotype Detail
