FIGURE

Fig. 8

ID

ZDB-FIG-240109-55

Publication

Tian et al., 2024 - WRN loss accelerates abnormal adipocyte metabolism in Werner syndrome

Other Figures

(all 8)

All Figure Page

Back to All Figure Page

Fig. 8

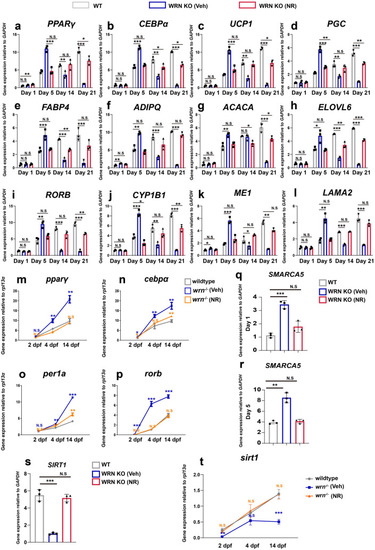

Nicotinamide riboside (NR) normalizes metabolism in WRN KO adipocytes. a–h qTR-PCR analysis of selected adipogenic genes PPARγ (a), CEBPα (b), UCP1 (c), PGC (d), FABP4 (e), ADIPQ (f), ACACA (g), and ELOVL 6 (h) among WT, WRN KO (veh), and WRN KO (NR) in hMSCs (N = 3 biological replicates). i–l qTR-PCR analysis of selected adipogenic circadian genes RORB (i), CYP1B1 (j), ME1 (k), and LAMA2 (l) among WT, WRN KO (veh), and WRN KO (NR) (N = 3 biological replicates). m–p qTR-PCR analysis of selected adipogenic circadian genes pparγ (m), cebpα (n), per1a (o), and rorb (p) among wildtype, wrn^−/− mutant zebrafish (veh), and wrn^−/− mutant zebrafish (NR) (N = 3 biological replicates). q, r qTR-PCR analysis of SMARCA5 on day 1 (q) and day 5 (r) during adipogenesis (N = 3 biological replicates). s qTR-PCR analysis of SIRT1 on day 5 during adipogenesis (N = 3 biological replicates). t qTR-PCR analysis of sirt1 at 2 dpf, 4 dpf, and 14 dpf in zebrafish (N = 3 biological replicates). Data are presented as the mean ± S.D. Statistical analysis was performed using two-tailed unpaired Student’s t-test. *P < 0.05, **P < 0.01, ***P < 0.001

Expression Data

Genes:	cebpa per1a pparg rorb sirt1
Fish:	WT wrn^{sa34829/sa34829}
Condition:	chemical treatment by environment: N-ribosylnicotinamide
Anatomical Term:	whole organism
Stage Range:	Long-pec to Days 14-20

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	wrn^{sa34829/sa34829}
Condition:	chemical treatment by environment: N-ribosylnicotinamide
Observed In:	whole organism
Stage Range:	Long-pec to Days 14-20

Phenotype Detail
