Fig. 6.

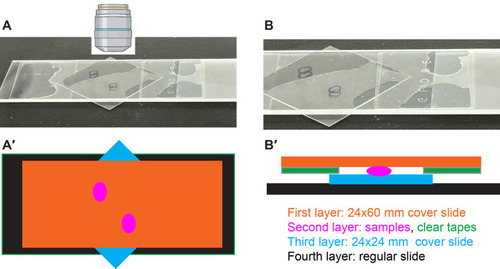

Samples are placed on a bridged slide for imaging. (A) Image showing the final slide with samples mounted between the 24×60 mm and 24×24 mm coverslips, supported by a regular slide. (B) Zoomed-in image of A. (A′-B′) Schematic showing the construction of a bridged slide (A′, top view; B′, side view), which consists of multiple layers: the first layer (orange) is a 24×60 mm coverslip, the second layer is made of clear tape (green) and samples (magenta); the third layer is a 24×24 mm coverslip (blue); and the fourth layer is a regular slide (black).
