Fig. 3

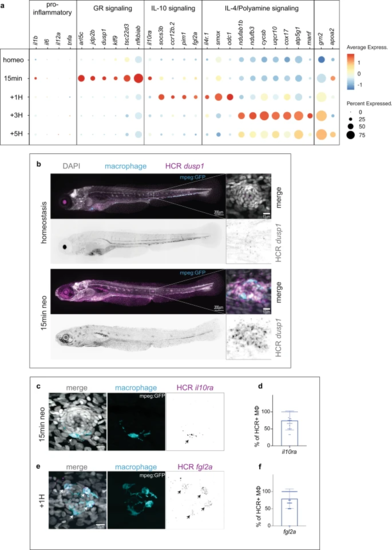

a Dot-Plot of selected differentially upregulated genes for each time point of the scRNA-seq time course within the effector population. b Representative confocal images (Maximum projection of a 200 μm z-stack) of an HCR-FISH for dusp1 in a 5dpf larvae (left) and zoom image of a representative neuromast (right) (from 6 whole larvae at 5dpf for homeostasis and 6 whole larvae at 5dpf after 15 min neo treatment. 2 biological replicates). c, e Representative confocal images (projection of a 30 μm z-stack) of HCR-FISH within the effector macrophages (arrows) for (c) il10ra, (e) fgl2a. d, f Quantifications of the percentage of HCR + effector macrophages (MΦ) for (d) il10ra, (f) fgl2a. (12 larvae with 3 neuromasts per larva and 3 biological replicates). For all graphs, data are represented as mean ± SD.

Expression Data

Genes:	dusp1 fgl2a il10ra
Fish:	gl22Tg
Condition:	chemical treatment by environment: neomycin
Anatomical Term:	neuromast macrophage
Stage:	Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	gl22Tg
Condition:	chemical treatment by environment: neomycin
Observed In:	macrophage interleukin-4-mediated signaling pathway macrophage interleukin-10-mediated signaling pathway macrophage obsolete glucocorticoid mediated signaling pathway macrophage polyamine biosynthetic process neuromast macrophage neuromast macrophage activation
Stage:	Day 5

Phenotype Detail
