FIGURE

Fig. 5

ID

ZDB-FIG-220601-12

Publication

Lelieveld et al., 2022 - Consequences of excessive glucosylsphingosine in glucocerebrosidase-deficient zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Fig. 5

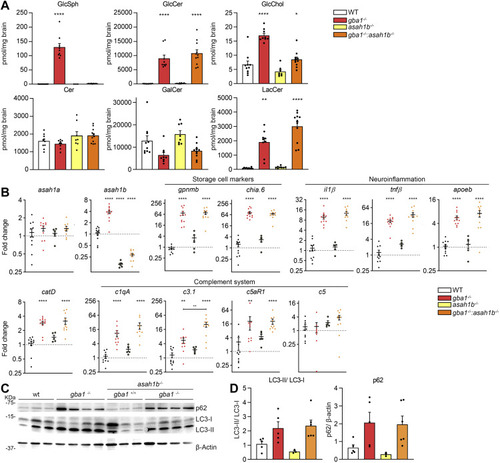

Fig. 5. Biochemical abnormalities in adult zebrafish brain. A: Lipid levels were determined of dissected brains in pmol/mg tissue. GlcSph, GalCer, and GlcChol were separated from their respective galactosylated lipid by HILIC chromatography. Data is depicted as mean � SEM; WT (n = 9?10), gba1^-/- (n = 9), asah1b^-/- (n = 8), and gba1^-/-:asah1b^-/- (n = 11). Data is analyzed by One-Way Anova with Tukey?s multiple comparison test. B: mRNA levels of asah1a, asah1b, gpnmb, chia.6, il-1?, tnf?, apoEb, catD, c1qA, c3.1, c5aR, and c5 was determined using RT-qPCR analysis; WT (n = 9?11), gba1^-/- (n = 8?11), asah1b^-/- (n = 5), and gba1^-/-:asah1b^-/- (n = 9?10). Data is analyzed by One-way Anova with Tukey?s multiple comparison test. C: Representative Western blot of p62, LC3-I, LC3-II, ?-catenin protein levels in WT, gba1^-/-, asah1b^-/-, and gba1^-/-:asah1b^-/- zebrafish brains, with ?-actin as protein loading control. D: Quantitative analysis of LC3-II/LC-I levels and p62 protein levels. WT (n = 5), gba1^-/- (n = 5), asah1b^-/- (n = 3), and gba1^-/-:asah1b^-/- (n = 6). Statistical analysis is depicted of WT versus gba1^-/-, asah1b^-/-, or asah1b^-/-:gba1^-/-, only when a significant difference is apparent or of gba1^-/- versus asah1b:gba1^-/- when significant difference is of interest. ?p < 0.05, ??p < 0.01, and ???? p < 0.0001. GalCer, galactosylceramide; GlcSph, glucosylsphingosine; GlcChol, glucosylated cholesterol.

Expression Data

Genes:	apoeb asah1a asah1b c1qa c3a.1 c5 c5ar1 chia.6 gpnmb il1b tnfb
Antibodies:	Ab2-map1lc3 Ab9-sqstm1
Fish:	AB/TL asah1b^{zf3576/zf3576} (AB/TL) gba1^{zf3252/zf3252} (AB/TL) asah1b^{zf3576/zf3576}; gba1^{zf3252/zf3252} (AB/TL)
Anatomical Term:	brain
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	asah1b^{zf3576/zf3576} (AB/TL) gba1^{zf3252/zf3252} (AB/TL) asah1b^{zf3576/zf3576}; gba1^{zf3252/zf3252} (AB/TL)
Observed In:	brain brain autophagy brain ceramide brain cholesteryl glycoside brain D-glucosylsphingosine brain galactosylceramide brain glucosylceramide brain Lactosylceramide (d18:1/12:0)
Stage:	Adult

Phenotype Detail
