Figure 1

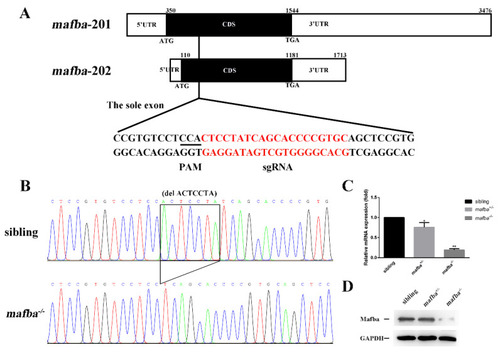

CRISPR/Cas9-mediated mutagenesis of mafba. (A) The sole exon of two mafba transcripts and the CRISPR/Cas9 target site are shown. The 5?UTR, CDS, and 3?UTR regions of the two mafba transcripts are shown in detail. (B) DNA sequencing identifies the c.298_304delACTCCTA mafba mutation lines. The 7-bp deletion is indicated with a black frame. (C) Relative expressions of mafba determined by qRT-PCR analysis in sibling, mafba^+/?, and mafba^?/? embryos at 4 dpf. The ?-actin served as the endogenous control. Data are represented as mean � SD; *, p < 0.05; **, p < 0.01. (D) Western blot analysis shows the similar protein expression of Mafba between siblings and mafba^+/? embryos, but a significant decrease in mafba^?/? mutants at 4 dpf. GAPDH was used as the internal control.

Expression Data

Gene:	mafba
Antibody:	Ab2-mafba
Fish:	mafba^hzu17/hzu17
Anatomical Term:	head
Stage:	Day 4

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	mafba^hzu17/hzu17
Observed In:	head
Stage:	Day 4

Phenotype Detail
