FIGURE

Figure 3

ID

ZDB-FIG-211201-174

Publication

Chen et al., 2021 - Knockout of mafba Causes Inner-Ear Developmental Defects in Zebrafish via the Impairment of Proliferation and Differentiation of Ionocyte Progenitor Cells

Other Figures

All Figure Page

Back to All Figure Page

Figure 3

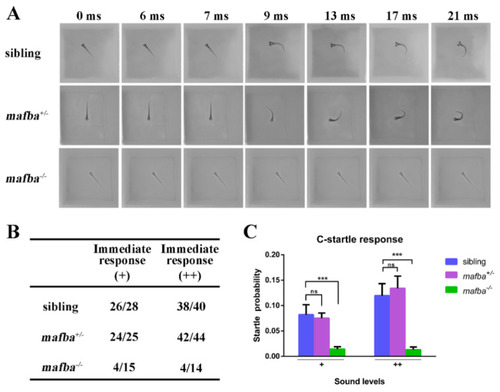

Hearing disability test for mafba^−/− mutants at 5 dpf. (A) C-startle escape response of embryos of different genotypes in response to the sound stimuli at 500-Hz frequency and 10-ms duration. Typical C-startle escape response initiated within 9 ms after the sound stimulation. (B) Statistical data show the proportion of immediate responses in three genotypes at two different sound intensities. Data represent the number of immediate responses versus the number of total responses. ‘+’ and ‘++’ mean 20 dB and 40 dB, respectively. (C) The average C-startle response probability. For each group, 32 larvae were tested. Data are mean ± SD; ns, p > 0.05; ***, p < 0.001.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	mafba^hzu17/hzu17
Condition:	vibration
Observed In:	startle response
Stage:	Day 5

Phenotype Detail
