Fig 6

Gene ontology (GO) enrichment analyses of the DETs.

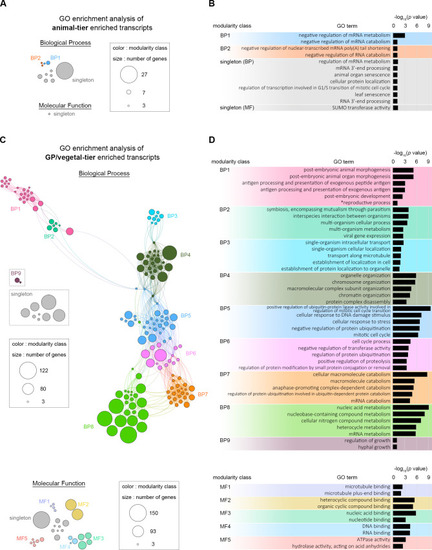

(A) Results of the GO enrichment network analysis (adjusted p value < 0.1) of animal tier-enriched transcripts. Individual node of the network denotes a specific enriched GO term, including biological process (BP) and molecular function (MF). The GO terms are clustered and divided into different modules that are labeled with different colors. Unclassified GO terms are labeled as singletons. Sizes of the circles indicate numbers of genes in each GO term. (B) Descriptions of the most enriched GO terms within each module for the animal tier-enriched transcripts. The bars indicate -log10 adjusted p values for the corresponding GO terms. (C) Results of the GO enrichment network analysis (adjusted p value < 0.1) of germ granule-positive and/or vegetal tier-enriched transcripts. Individual node of network denotes a specific enriched GO term, including biological process (upper panel) and molecular function (lower panel). Lines connecting different nodes represent their semantic similarity. (D) Descriptions of GO terms within each module with the -log10 adjusted p value. Five GO terms with the smallest adjusted p values from different modules are presented. One manually selected GO term is indicated (*).
