ZFIN ID: ZDB-FIG-191230-929
Hughes et al., 2019 - Oligodendrocytes express synaptic proteins that modulate myelin sheath formation. Nature communications   10:4125 Full text @ Nat. Commun.
Anatomical Terms:
Stage Range: Protruding-mouth to Day 5

Fig. 1

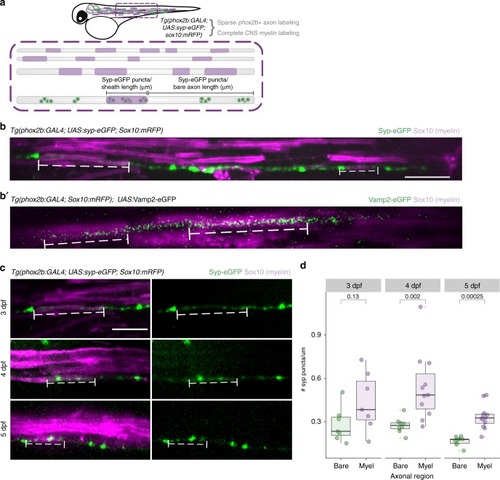

Axons accumulate synaptic vesicle release machinery under myelin sheaths. a Schematic of transgenes used to assess synaptic puncta density along myelinated and bare regions of axons. b Representative image of Syp-eGFP in a myelinated phox2b + axon in a living 3 dpf Tg(phox2b:GAL4; UAS:syp-eGFP; sox10:mRFP) larva. Bracketed dashed lines indicate two myelin sheaths (rectangles) on the axon. b′ Same as (b) for Vamp2-eGFP; animal genotype is Tg(phox2b:GAL4; sox10:mRFP) with transient expression of UAS:Vamp2-eGFP. c Representative images of Syp-eGFP distribution in myelinated phox2b + axons at 3, 4, and 5 dpf. d Comparisons of Syp-eGFP puncta density within bare vs myelinated regions of axons at each timepoint. n = 7 bare regions/98 puncta and 7 sheaths/18 puncta (3 dpf); 8 bare/119 puncta and 11 sheaths/43 puncta (4 dpf); 9 bare/75 puncta, and 12 sheaths/38 puncta (5 dpf). Wilcox rank-sum test, p = 0.13, p = 0.002, p = 0.00025 for 3, 4, and 5 dpf, respectively. Scale bars, 10 µm

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
GFP co21Tg; uq1esTg; vu234Tg standard conditions Protruding-mouth reticulospinal neuron axon IFL
Day 4 reticulospinal neuron axon IFL
Day 5 reticulospinal neuron axon IFL
mRFP co21Tg; uq1esTg; vu234Tg standard conditions Protruding-mouth reticulospinal neuron myelin sheath IFL
Protruding-mouth reticulospinal neuron oligodendrocyte IFL
Day 4 reticulospinal neuron myelin sheath IFL
Day 4 reticulospinal neuron oligodendrocyte IFL
Day 5 reticulospinal neuron myelin sheath IFL
Day 5 reticulospinal neuron oligodendrocyte IFL
Antibody Labeling Details No data available
Phenotype Details No data available
