Fig. 3

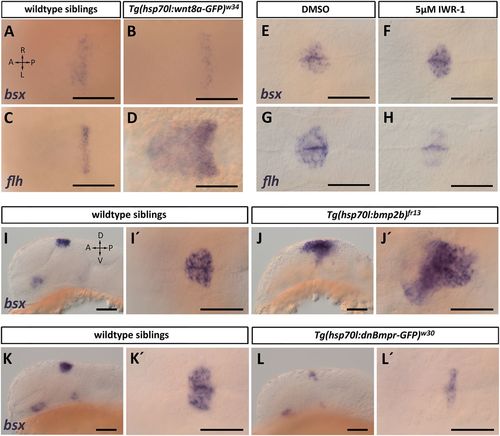

Bmp but not Wnt signaling regulates bsx expression in the PC. (A-D,I-L?) Transgenic embryos (as indicated in boxes) and wild-type control siblings were heat-shocked for 1 h from 12 to 13?hpf and fixed either at 16?hpf (A-D) or 24?hpf (I-L?). (E-H) Embryos were treated with the Wnt inhibitor IWR-1 from 2?hpf onwards and fixed at 24?hpf. bsx or flh expression were detected by WISH as indicated. (A-H,I?,J?,K?,L?) Dorsal views, orientations as indicated in (A); (I,J,K,L) lateral views, orientations as indicated in (J). Numbers for representative phenotype shown and embryos analyzed: (A) 19/19, (B) 20/20, (C) 14/14, (D) 17/17, (E) 18/18, (F) 14/14, (G) 19/19, (H) 13/15, (I,I?) 26/26, (J,J?) 27/27, (K,K?) 16/16 and (L,L?) 15/16. Scale bars: 100?�m.

Expression Data

Genes:	bsx noto
Fish:	AB/TL fr13Tg (AB/TL) w30Tg (AB/TL) w34Tg (AB/TL)
Conditions:	chemical treatment by environment: IWR-1-endo heat shock
Anatomical Term:	pineal complex
Stage Range:	14-19 somites to Prim-5
