Fig. 6

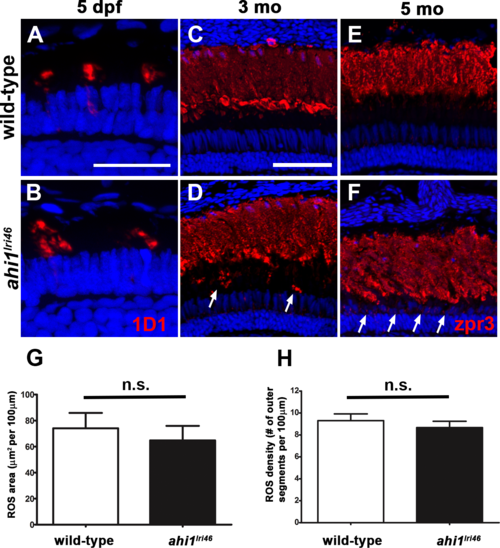

Immunohistochemical analysis of rod photoreceptors in ahi1^lri46 mutants. (A, B) Rod photoreceptors stained with 1D1 (red, rhodopsin) at 5 dpf. (C–F) Rod photoreceptors stained with zpr3 (red, rhodopsin) at 3- (C, D) and 5- (E, F) month-old animals. Arrows in (D) and (F) highlight rhodopsin mislocalization. (G) Quantification of rod outer segment area at 5 dpf. (H) Quantification of rod density at 5 dpf. Scale bars: 20 μm (A–B) and 50 μm (C–F).

Expression Data

Gene:	rho
Antibodies:	Ab1-rho zpr-3
Fish:	WT ahi1^lri46/lri46
Anatomical Terms:	retinal outer nuclear layer retinal rod cell photoreceptor outer segment
Stage Range:	Day 5 to Adult

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	ahi1^lri46/lri46
Observed In:	retinal outer nuclear layer retinal rod cell photoreceptor outer segment
Stage Range:	Day 5 to Adult

Phenotype Detail
