Fig. 7

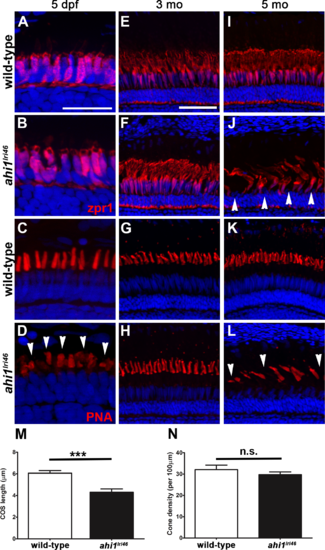

Immunohistochemical analysis of cone photoreceptors in ahi1^lri46 mutants. (A, B, E, F, I, J) Red-green double cones are labeled with zpr1 (red). Cone inner segments are preserved at 5 dpf and 3 months of age, but missing (arrowheads) at 5 months. (C, D, G, H, K, L) PNA staining (red) revealed that mutants had shorter cone outer segments ([D], arrowheads) at 5 dpf and missing at 5 months ([L], arrowheads). (M) Quantification of cone outer segment lengths between wild-type and ahi1^lri46 mutants at 5 dpf. ***P < 0.001. N, quantification of cone density at 5 dpf.

Expression Data

Antibody:	zpr-1
Fish:	WT ahi1^lri46/lri46
Anatomical Terms:	retinal cone cell cell body retinal cone cell photoreceptor inner segment
Stage Range:	Day 5 to Adult

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	ahi1^lri46/lri46
Observed In:	retinal cone cell retinal cone cell photoreceptor cell outer segment organization retinal cone cell photoreceptor outer segment retinal cone cell development retinal neural layer
Stage Range:	Day 5 to Adult

Phenotype Detail
