ZFIN ID: ZDB-FIG-170206-20
Lu et al., 2017 - Tbx20 drives cardiac progenitor formation and cardiomyocyte proliferation in zebrafish. Developmental Biology   421(2):139-148 Full text @ Dev. Biol.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Gene:
Fish:
Anatomical Terms:
Stage Range: 14-19 somites to Long-pec
PHENOTYPE:
Fish:
Observed In:
Stage Range: 14-19 somites to Long-pec

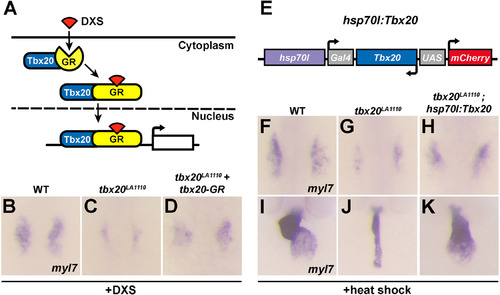

Fig. 5

Tbx20 overexpression rescues the cardiac defects present in tbx20 mutant embryos. (A) Diagram of the inducible activity of the tbx20-GR (glucocorticoid receptor) fusion protein. The addition of DXS (dexamethasone) is required for the translocation of the tbx20-GR protein into the nucleus. (B-D) Dorsal views of myl7 expression at the 16-somite stage in wild type embryos (B), tbx20 mutants (C) and tbx20 mutants injected with tbx20-GR mRNA (D). The cardiomyocyte production defects in tbx20 mutant embryos are substantially rescued by the injection of tbx20-GR mRNA. (E) Schematic representation of the hsp70l:Tbx20 transgene used for tbx20 overexpression. (F-H) Dorsal views of myl7 expression at the 16-somite stage in wild type (F), tbx20 mutant (G) and Tbx20-/-; Tg(hsp70l:Tbx20) embryos (H). (I-K) Frontal views of myl7 expression at 48hpf in wild type (I), tbx20 mutant (J) and Tbx20-/-;Tg(hsp70l:Tbx20) embryos (K). Overexpression of Tbx20 successfully restored cardiomyocyte production in tbx20 mutant embryos.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
myl7 WT control 14-19 somites anterior lateral plate mesoderm heart primordium ISH
14-19 somites cardiac muscle cell ISH
Long-pec cardiac muscle cell ISH
Long-pec heart ISH
tbx20la1110/la1110 control 14-19 somites anterior lateral plate mesoderm heart primordium ISH
14-19 somites cardiac muscle cell ISH
Long-pec cardiac muscle cell ISH
Long-pec heart ISH
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
tbx20la1110/la1110 control 14-19 somites anterior lateral plate mesoderm heart primordium myl7 expression decreased amount, abnormal
Long-pec heart myl7 expression decreased amount, abnormal
