Fig. 4

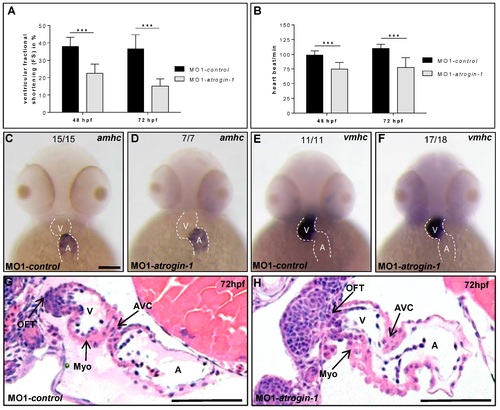

Impaired heart function in Atrogin-1-deficient embryos. (A) Fractional shortening (FS) measurements of the ventricular chambers of Atrogin-1 morphants and embryos injected with control Morpholino at 48 and 72 hpf; (B) Heart beat per minute of MO1-control compared to MO1-atrogin-1 injected embryos measured at 48 and 72 hpf. Data represent means ± SD, student´s t-test, *** p< 0.0001 (A,B); (C-F) Whole-mount antisense RNA in situ hybridization against atrial myosin heavy chain (amhc) and ventricular myosin heavy chain (vmhc) demonstrates unaltered mRNA expression in Atrogin-1 morphants at 48 hpf, scale bar = 50 µm; (G,H) H&E-stained sagittal histological sections shows normal heart morphology in MO1-control and MO1-atrogin-1 morphant hearts at 72 hpf. Atrium (A), ventricle (V), myocardium (Myo), atrio-ventricular canal (AVC) and outflow tract (OFT), scale bar = 50 µm.

Expression Data

Genes:	myh6 myh7
Fish:	WT WT + MO3-fbxo32
Knockdown Reagent:	MO3-fbxo32
Anatomical Terms:	atrium cardiac ventricle
Stage:	Long-pec

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT + MO3-fbxo32
Knockdown Reagent:	MO3-fbxo32
Observed In:	atrioventricular canal atrium cardiac ventricle heart heart contraction
Stage Range:	Long-pec to Protruding-mouth

Phenotype Detail
