Fig. 9

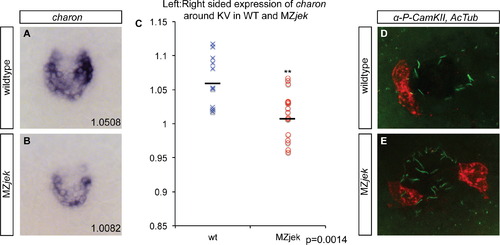

Symmetry breaking in MZjek is abnormal downstream of flow establishment. (A,B) charon expression at KV in wildtype (A) and MZjek (B) embryos at 14 SS with corresponding ratios of left:right side expression quantification. (C) Ratio of left sided:right sided expression of charon surrounding KV in wildtype and MZjek (**p<0.01). (D,E) Confocal immunofluorescence of KV using anti-acetylated alpha-tubulin (green) and anti-phosphorylated CaMK-II (red) to visualize activated CaMK-II in cells surrounding the KV in wildtype (D) and MZjek (E) embryos at 12 SS (N=26, ***p<0.001). |
