Fig. 5

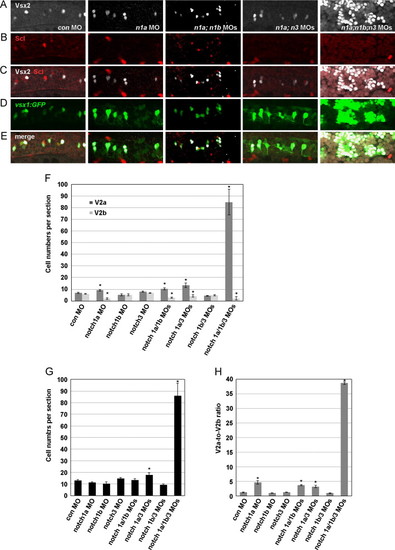

Notch1a is mainly required for the V2a/b fate decision, and Notch1a, Notch1b, and Notch3 are redundant for p2 progenitor cell maintenance. (A–G) Increased V2a and decreased V2b cell numbers were seen in notch1a, notch1a/notch1b, notch1a/notch3, and notch1a/notch1b/notch3, but not in notch1b, notch3, or notch1b/notch3 knockdown embryos. V2a and V2b cells were identified as vsx1:GFP/Vsx2 double positive- and vsx1:GFP/Scl double positive-cells, respectively. (A–E) side views of embryos at 24 hpf with anterior to the left, dorsal up. Bar scale: 50 µm. (F) V2a and V2b cell numbers per section. (G) Total V2 cell numbers (V2a+V2b) per section in notch knockdown embryos. (H) V2a-to-V2b ratio in notch knockdown embryos. (F–H) Control MO, n=21; notch1a MO, n=16; notch1b MO, n=9; notch3 MO, n=8; notch1a/notch1b MOs, n=19; notch1a/notch3 MOs, n=7; notch1b/notch3 MOs, n=12; notch1a/notch1b/notch3 MOs, n=14. Asterisks indicate statistically significant differences relative to the control (p<0.005). Error bars, SEM.

Expression Data

Gene:	GFP
Fish:	nns5Tg nns5Tg + MO3-notch1a + MO4-notch1a nns5Tg + MO2-notch1b + MO3-notch1a + MO4-notch1a nns5Tg + MO2-notch3 + MO3-notch1a + MO3-notch3 + MO4-notch1a nns5Tg + MO2-notch1b + MO2-notch3 + MO3-notch1a + MO3-notch3 + MO4-notch1a
Knockdown Reagents:	MO2-notch1b MO2-notch3 MO3-notch1a MO3-notch3 MO4-notch1a
Anatomical Terms:	CiD VeLD
Stage:	Prim-5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	nns5Tg + MO3-notch1a + MO4-notch1a nns5Tg + MO2-notch1b + MO3-notch1a + MO4-notch1a nns5Tg + MO2-notch3 + MO3-notch1a + MO3-notch3 + MO4-notch1a nns5Tg + MO2-notch1b + MO2-notch3 + MO3-notch1a + MO3-notch3 + MO4-notch1a
Knockdown Reagents:	MO2-notch1b MO2-notch3 MO3-notch1a MO3-notch3 MO4-notch1a
Observed In:	CiD VeLD
Stage:	Prim-5

Phenotype Detail
