Fig. 1

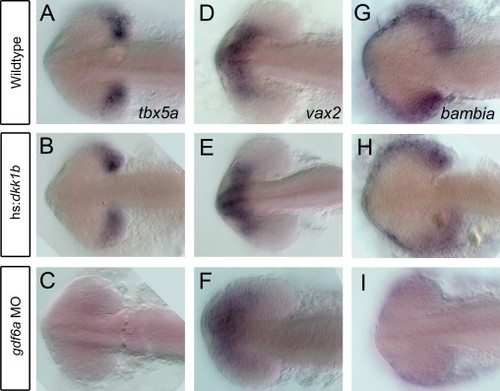

BMP signaling regulates initiation of dorso-ventral retina patterning. To examine the roles of extra cellular signaling pathways in initiating dorsal retina identity, we carried out in situ hybridization for dorsal (tbx5a, bambia) and ventral (vax2) retina markers in 15 hours post fertilization (hpf) embryos. To block Wnt signaling, we utilized a heat shock inducible Wnt inhibitor Dickkopf 1b (Dkk1b). In parallel, we blocked BMP signaling by injecting embryos with morpholinos targeting growth differentiation factor 6a (gdf6a MO). Dorsal retina genes tbx5a (A-C), and bambia (G-I) are significantly reduced in the absence of BMP but not Wnt signaling. The ventral retina gene vax2 (D-F) is also unaffected by the absence of Wnt signaling, while slightly expanded in embryos lacking BMP signaling. All embryos are shown in dorsal mount with anterior aligned to the left.

Expression Data

Genes:	bambia tbx5a vax2
Fish:	WT WT + MO1-gdf6a + MO5-gdf6a w32Tg
Condition:	heat shock
Knockdown Reagents:	MO1-gdf6a MO5-gdf6a
Anatomical Terms:	optic vesicle dorsal region optic vesicle ventral region
Stage:	10-13 somites

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 388(2), Holly, V.L., Widen, S.A., Famulski, J.K., and Waskiewicz, A.J., Sfrp1a and Sfrp5 function as positive regulators of Wnt and BMP signaling during early retinal development, 192-204, Copyright (2014) with permission from Elsevier. Full text @ Dev. Biol.
