Fig. 8

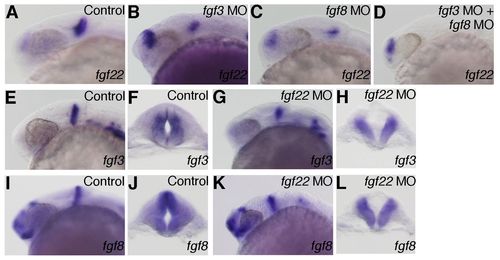

Interactions between fgf3, fgf8 and fgf22.

(A–D) The expression of fgf22 at 24 hpf in embryos injected with control MO (A), fgf3 MO (B), fgf8 MO (C), and fgf3 MO and fgf8 MO (D). (E–L) The expression of fgf3 (E–H) and fgf8 (I–L) at 24 hpf in embryos injected with control MO (E,F,I,J) and fgf22 MO (G,H,K,L). A–D,E,G,I,K are lateral views, anterior to the left; F,H,J,L are optical cross-sections of the MHB.

Expression Data

Genes:	fgf3 fgf8a fgf22
Fish:	WT WT + MO1-fgf3 WT + MO1-fgf22 WT + MO3-fgf8a WT + MO1-fgf3 + MO3-fgf8a
Knockdown Reagents:	MO1-fgf3 MO1-fgf22 MO3-fgf8a
Anatomical Terms:	midbrain posterior region midbrain hindbrain boundary
Stage:	Prim-5
