Fig. 3

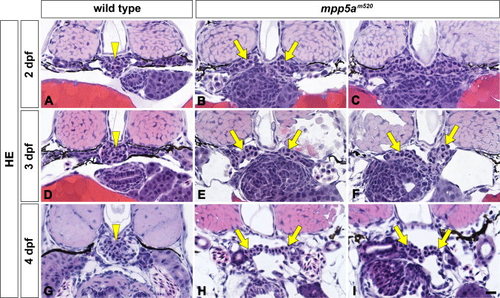

mpp5a^m520 mutant displays structural disorganization of pronephric glomerulus. Pronephric glomerular structure is shown by hematoxylin-eosin stained JB-4 section at 2 dpf (A-C), 3 dpf (D–F), and 4 dpf (G-I). In wild type siblings, a pair of glomerular primordia has merged to form a single glomerulus (arrowheads) beneath the notochord at 2 dpf (A), 3 dpf (D), and 4 dpf (G). In 2-dpf mpp5a^m520 mutants, a pair of glomerular primordia retains epithelial vesicular structure that does not merge beneath the notochord (arrows in B, C). At 3 and 4 dpf mpp5a^m520 mutants still exhibited two separated podocyte masses (arrows in E, F, H, I). Scale bar = 10 μm.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	pals1a^m520/m520
Observed In:	pronephric glomerulus pronephros development
Stage Range:	Long-pec to Day 4
