FIGURE

Fig. 4

ID

ZDB-FIG-111017-8

Publication

Ramachandran et al., 2011 - Ascl1a/Dkk/ beta -catenin signaling pathway is necessary and glycogen synthase kinase-3 beta inhibition is sufficient for zebrafish retina regeneration

Other Figures

All Figure Page

Back to All Figure Page

Fig. 4

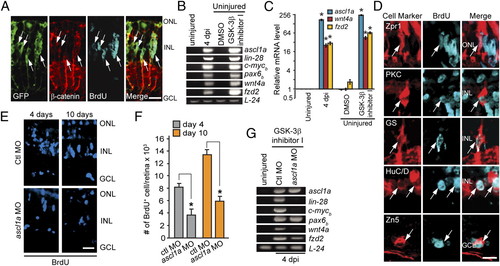

β-Catenin stabilization stimulates MG dedifferentiation and the generation of multiple retinal cell types in the uninjured retina. (A) Intravitreal injection of GSK-3β inhibitor induces GFP, β-catenin, and cell proliferation in the uninjured retina of 1016 tuba1a:gfp transgenic fish. (B and C) Expression of regeneration-associated genes in uninjured retinas treated with the GSK-3β inhibitor. *P < 0.0001. (D) GSK-3β inhibitor-induced retinal progenitors proliferate and generate all major retinal cell types. (E and F) Effect of Ascl1a knockdown on MG proliferation in the GSK-3β inhibitor-treated retina. *P < 0.002. (G) Effect of Ascl1a knockdown on genes associated with MG dedifferentiation in the GSK-3β inhibitor-treated retina. [Scale bars, 10 μm (A and D); 20 μm (E).] Abbreviations are as in Fig. 1.

Expression Data

Genes:	ascl1a fzd2 GFP lin28ab myca pax6a wnt4
Antibodies:	Ab1-elavl Ab1-glul Ab2-ctnnb zn-5 zpr-1
Fish:	mi4Tg nt11Tg mi4Tg + MO1-ascl1a
Conditions:	chemical treatment: pharmaceutical physical alteration: anatomical structure
Knockdown Reagent:	MO1-ascl1a
Anatomical Terms:	amacrine cell Muller cell retina retinal ganglion cell retinal ganglion cell layer retinal inner nuclear layer retinal outer nuclear layer visible light photoreceptor cell
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
