FIGURE

Fig. S6

ID

ZDB-FIG-110516-49

Publication

Lazic et al., 2011 - Mef2cb regulates late myocardial cell addition from a second heart field-like population of progenitors in zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Fig. S6

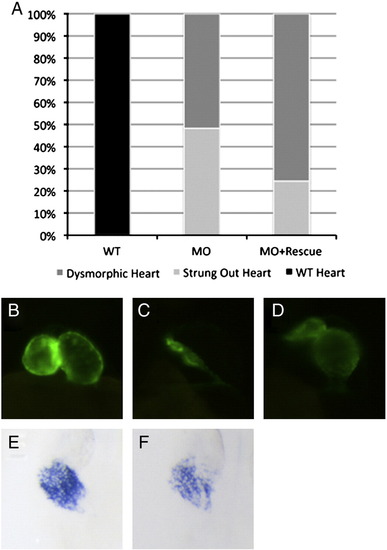

mef2cb morphants showed heart defects that are partially rescued by injection of morpholino-resistant mRNA. (A) 48 hpf heart phenotypes of WT control, mef2cb MO, and MO + mef2cb RNA rescue embryos. WT control embryos showed normal chamber inflation and alignment in 100% of cases (n = 16). Injection of 0.5 ng of mef2cb morpholino resulted in equal proportion of embryos showing strung out hearts (n = 14) and dysmorphic/unlooped hearts (n = 15). Co-injection of morphant embryos with 20 pg of mef2cb morpholino-resistant mRNA resulted in an increase in the milder dysmorphic/unlooped heart phenotype (n = 34) compared to strung out hearts (n = 11). (B–D) Representative images of 48 hpf hearts: (B) WT heart with inflated and aligned atrium and ventricle, (C) strung out heart with no chamber inflation, (D) dysmorphic/unlooped heart with inflated atrium and collapsed ventricle. (E and F) amhc staining in 26 hpf WT control (E) and mef2cb morphant (F).

Expression Data

Gene:	myh6
Fish:	WT WT + MO1-mef2cb
Knockdown Reagent:	MO1-mef2cb
Anatomical Term:	presumptive atrium heart tube
Stage:	Prim-5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT + MO1-mef2cb
Knockdown Reagent:	MO1-mef2cb
Observed In:	atrium cardiac muscle cell differentiation embryonic heart tube morphogenesis heart heart contraction
Stage Range:	Prim-5 to Long-pec

Phenotype Detail
