FIGURE

Fig. 7

ID

ZDB-FIG-101101-7

Publication

Ablooglu et al., 2010 - Integrin alphaV is necessary for gastrulation movements that regulate vertebrate body asymmetry

Other Figures

All Figure Page

Back to All Figure Page

Fig. 7

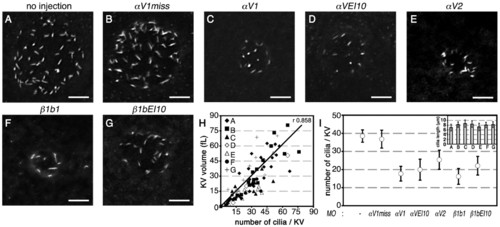

αV and β1b knockdown disrupts physical properties of Kupffer′s vesicle. (A-G) Dorsal views of 6-8 SS embryos; confocal images of Kupffer′s vesicle (KV) cilia were detected by a fluorescent anti-acetylated tubulin antibody. Shown is a 3D rendering of multiple focal planes through the embryo at the level of KV. Total number of embryos used to determine number of cilia per KV and cilia length per morphant: uninjected (n=19); 1.75 ng αV1miss (n=16); 1.25 ng αV1 (n=12); 5 ng αVEI10 (n=9); 1.75 ng αV2 (n=9); 1.0 ng β1b1 (n=8); 5 ng β1bEI10 (n=10). Scale bars: 20 μm. (H) Graphic representation of KV volume versus cilia number per KV. (I) Graphic representation of the number of cilia per KV in control and knockdown embryos. Inset, cilia length in αV and β1b morphants, indicated with their respective panel labels A to G. Data represent mean ± s.e.m.

Expression Data

Antibody:	Ab1-tuba
Fish:	WT WT + MO1-itgav WT + MO2-itgav WT + MO2-itgb1b WT + MO3-itgav WT + MO3-itgb1b
Knockdown Reagents:	MO1-itgav MO2-itgav MO2-itgb1b MO3-itgav MO3-itgb1b
Anatomical Term:	Kupffer's vesicle cilium
Stage:	5-9 somites

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT + MO1-itgav WT + MO2-itgav WT + MO2-itgb1b WT + MO3-itgav WT + MO3-itgb1b
Knockdown Reagents:	MO1-itgav MO2-itgav MO2-itgb1b MO3-itgav MO3-itgb1b
Observed In:	Kupffer's vesicle Kupffer's vesicle cilium
Stage:	5-9 somites

Phenotype Detail
