ZFIN ID: ZDB-FIG-100806-18
Talbot et al., 2010 - hand2 and Dlx genes specify dorsal, intermediate and ventral domains within zebrafish pharyngeal arches. Development (Cambridge, England)   137(15):2507-2517 Full text @ Development
ADDITIONAL FIGURES
PHENOTYPE:
Fish:
Knockdown Reagents:
Observed In:
Stage: Day 6

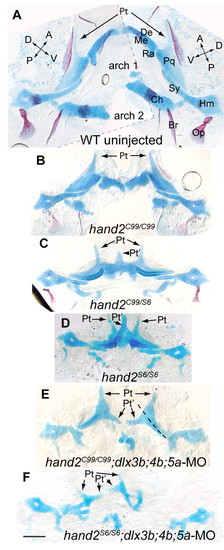

Fig. 7 hand2 mutants and hand2 mutants injected with dlx3b;4b;5a-MO show homeotic skeletal phenotypes. (A-F) Alcian Blue and Alizarin Red staining at 6 dpf. Images are flat mounted bilateral pharyngeal arches, oriented with midline to the center, and anterior upwards. (A) The wild-type skeleton was too large for a single image at this magnification, so two images were overlaid for this panel (border indicated with a broken grey line). (B) hand2C99 homozygotes have reduced ventral, but normal intermediate and dorsal domain skeleton. (C) In trans-heterozygous fish carrying hand2C99 and hand2S6, defects are typically more severe than in hand2C99 homozygotes, but less severe than in (D) hand2S6 homozygotes. In hand2S6 homozygotes, broad cartilages often span the midline, similar in shape to duplicated palatoquadrates, complete with pterygoid processes (arrows). (E) When hand2C99 homozygotes are injected with dlx3b;4b;5a-MO, joints are lost in both arches, and the remainder of Meckel′s cartilage is tapered out into a shape similar to a pterygoid process. A broken line indicates the first arch dorsal-ventral plane of symmetry. (F) The cartilage expansions of hand2S6 are lost when dlx3b;4b;5a-MO is injected. The palatoquadrate of hand2S6;dlx3b;4b;5a-MO is often severely defective, though the distance between the first and second arch-derived skeleton seen on the left side of F is exaggerated by mounting artifacts. Scale bar: 100 μm.

Gene Expression Details No data available
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
Df(Chr01:hand2)s6/s6(AB) standard conditions Day 6 embryonic viscerocranium morphogenesis disrupted, abnormal
Df(Chr01:hand2)s6/s6 + MO1-dlx3b + MO1-dlx5a + MO3-dlx4b(AB) standard conditions Day 6 embryonic viscerocranium morphogenesis disrupted, abnormal
Day 6 palatoquadrate cartilage morphology, abnormal
hand2c99/+; Df(Chr01:hand2)s6/+(AB) standard conditions Day 6 embryonic viscerocranium morphogenesis disrupted, abnormal
hand2c99/c99(AB) standard conditions Day 6 dentary shape, abnormal
Day 6 Meckel's cartilage decreased length, abnormal
hand2c99/c99 + MO1-dlx3b + MO1-dlx5a + MO3-dlx4b(AB) standard conditions Day 6 embryonic viscerocranium morphogenesis disrupted, abnormal
Day 6 mandibular arch skeleton joint absent, abnormal
Day 6 Meckel's cartilage decreased length, abnormal
Day 6 Meckel's cartilage morphology, abnormal
Day 6 Meckel's cartilage tapered, abnormal
Day 6 pharyngeal arch 2 skeleton joint absent, abnormal
