Fig. 2

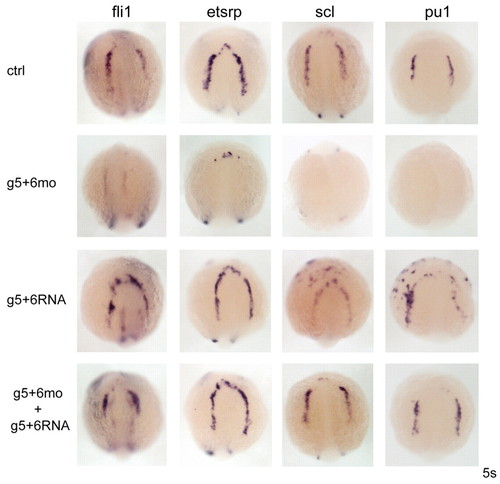

gata5 and gata6 rescue and gain-of-function experiments confirm necessity and identify sufficiency for myelopoiesis. Injection of exogenous gata5 and gata6 mRNA (g5+6RNA) into wild-type embryos did not induce fli1 or etsrp, whereas scl and pu1 were ectopically expressed. Rescue of all four genes was seen in gata5 and gata6 morphants co-injected with gata5 and gata6 mRNA (g5+6mo + g5+6RNA) when compared with gata5 and gata6 morphants alone (g5+6mo). Views are anterior-dorsal.

Expression Data
Genes:
Fish:
Knockdown Reagents:
Anatomical Term:
Stage: 5-9 somites

Expression Detail
Antibody Labeling
Phenotype Data

Phenotype Detail
