Fig. 3

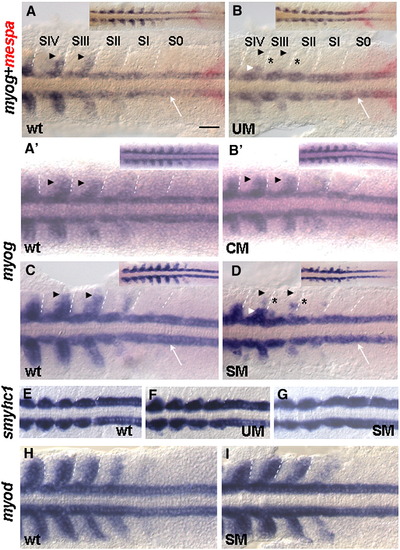

Six1a is required for early myog expression in fast muscle precursors. Flat mount embryos after two-color WISH for myog (purple) and mespa (red) at 9 s (A, B) or single-color in situ hybridization for myog (A′, B′, C, and D), smyhc1 (E–G) or myod (H, I) at 9 s. The four posterior somites with the adjacent presomitic mesoderm are shown. Insets show the posterior part of the embryo. Arrowheads indicate the region of fast muscle precursors. Note that the myog expression is nearly absent along the entire posterior border in SIII and retained in a few medially located cells in SIV (B) and in somites shown in panel D (white arrowheads). The expression in the adaxial cells (white arrow) was retained (B and D). The hardly visible residual myog expression in the affected cells marked by asterisks. CM caused no effect on myog expression (B′). UM or SM cause no obvious effect on the expression of slow muscle-specific marker smyhc1 (F and G, 62/65 and 55/60 of embryos injected with UM or SM, correspondingly) or on myod expression in fast muscle precursors (I; 70/73 of embryos injected with SM). Scale bar, 100 μm.

Expression Data
Knockdown Reagents:
Anatomical Terms:
Stage: 5-9 somites

Expression Detail
Antibody Labeling
Phenotype Data
Knockdown Reagents:
Observed In:
Stage: 5-9 somites

Phenotype Detail
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 323(2), Bessarab, D.A., Chong, S.W., Srinivas, B.P., and Korzh, V., Six1a is required for the onset of fast muscle differentiation in zebrafish, 216-228, Copyright (2008) with permission from Elsevier. Full text @ Dev. Biol.
