Fig. 4

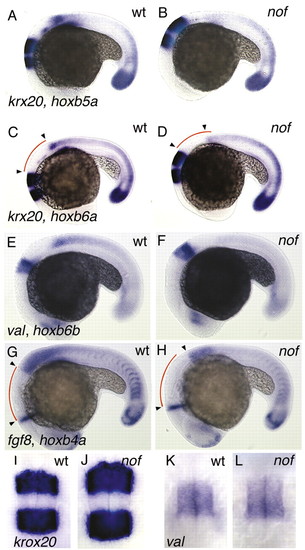

Anterior-posterior patterning defects in the CNS of nof mutants. In situ hybridisation as indicated of wild-type (A,C,E,G,I,K) and nof mutant (B,D,F,H,J,L) embryos at the 20s stage. (C,D,G,H) Curved red lines indicate the extent of tissue between different gene expression domains in wild type; arrowheads point to the borders of gene expression in wild type and nof mutants. |
