FIGURE

Fig. 1

ID

ZDB-FIG-071002-5

Publication

McDermott et al., 2007 - Analysis and functional evaluation of the hair-cell transcriptome

Other Figures

All Figure Page

Back to All Figure Page

Fig. 1

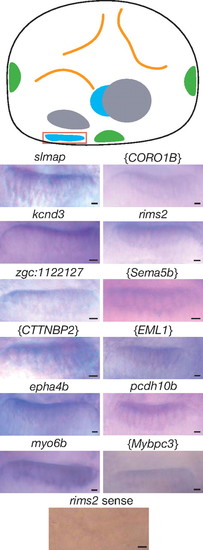

Expression of hair-cell transcripts in the anterior macula. The schematic diagram of the left ear of a 4-day-old zebrafish larva depicts the sensory maculae (blue), cristae of the semicircular canals (green), and otoliths (gray). A red box delimits the anterior macula. In situ hybridization was performed on whole-mount embryos for selected genes identified in Table 1. A bracketed symbol for a human or mouse gene indicates a probe designed to hybridize with a zebrafish transcript for which the corresponding protein′s amino acid sequence most resembles that encoded by the indicated gene. The rims2 sense probe and the myo6 probe constituted, respectively, a negative and a positive control. (Scale bars, 5 μm.)

Expression Data

Genes:	coro1b cttnbp2 eml1 epha4b kcnd3 mybpc3 myo6b pcdh10b rims2a slmapb tmem198ab wu:fc25e12
Fish:	TU
Anatomical Term:	anterior macula
Stage:	Day 4

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
