ZFIN Image: Zhao et al., 2021, Fig. 3


Figure Caption

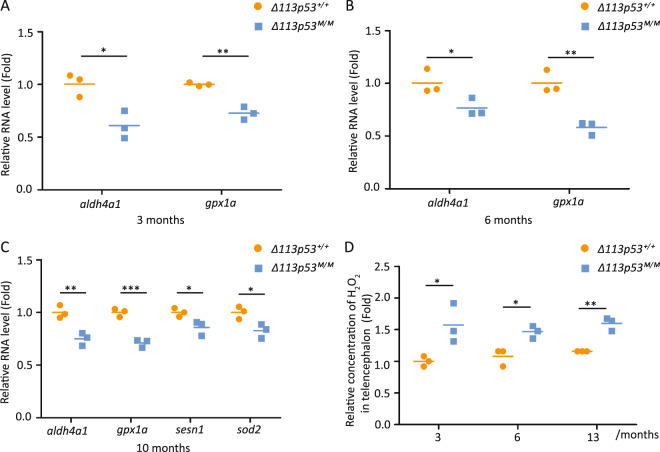

Fig. 3 Depletion of <italic>Δ113p53</italic> results in an elevated level of intracellular H<sub>2</sub>O<sub>2</sub> in zebrafish telencephalons.

A–C Relative mRNA expression of aldh4a1, gpx1a, sesn1, sod2 at 3- (A), 6- (B), and 10-months old (C) in the Δ113p53^+/+ or Δ113p53^M/M telencephalons. The total RNA was extracted from a pool of at least six telencephalons in each group. The average gene expression was normalized against β-actin and expressed as fold change. D The relative concentration of H₂O₂ in the Δ113p53^+/+ and Δ113p53^M/M telencephalons at 3-, 6-, and 13-months old as indicated. Each group was measured based on a pool of at least four telencephalons. Statistical analysis was performed on relevant data using the Student’s two-tailed t test. *P < 0.05, **P < 0.01, ***P < 0.001.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Cell Death Dis.
