Fig. 2
|
Figure Caption

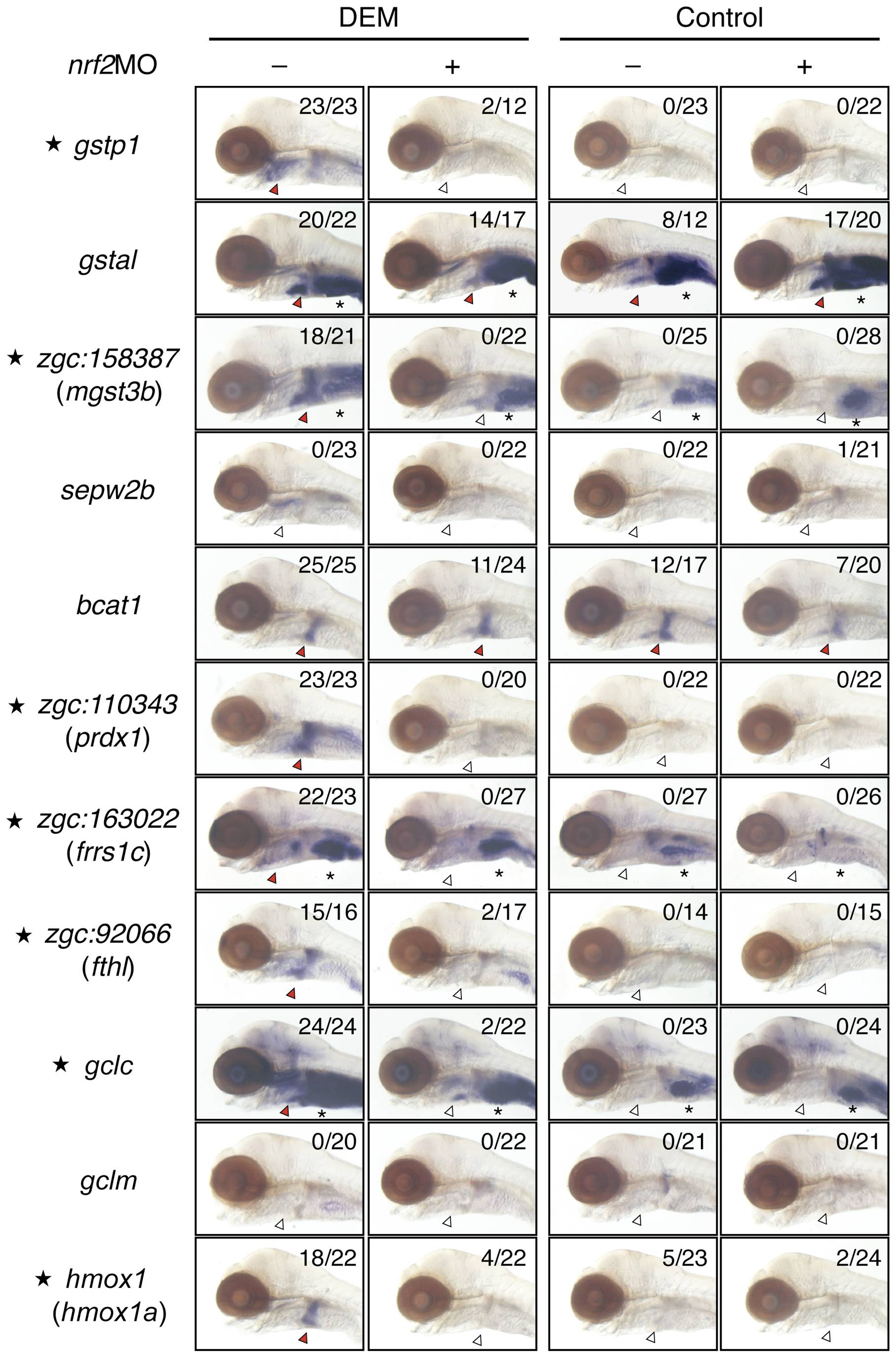

Fig. 2 WISH analysis of Nrf2 target genes.
Expression of eleven Nrf2 target genes was analyzed by WISH. Embryos were injected with or without nrf2MO and treated with or without 100 μM DEM for six hours (three hours only for hmox1a) at 5 dpf. Lateral views. Numbers indicate the induction positive embryos/tested embryos. Red and white arrowheads indicate positive and negative expression, respectively. Asterisks denote basal expression in the intestine.
