Fig. 5

ID
ZDB-IMAGE-110214-5
Genes
Source
Figures for Radosevic et al., 2011
Figure Caption

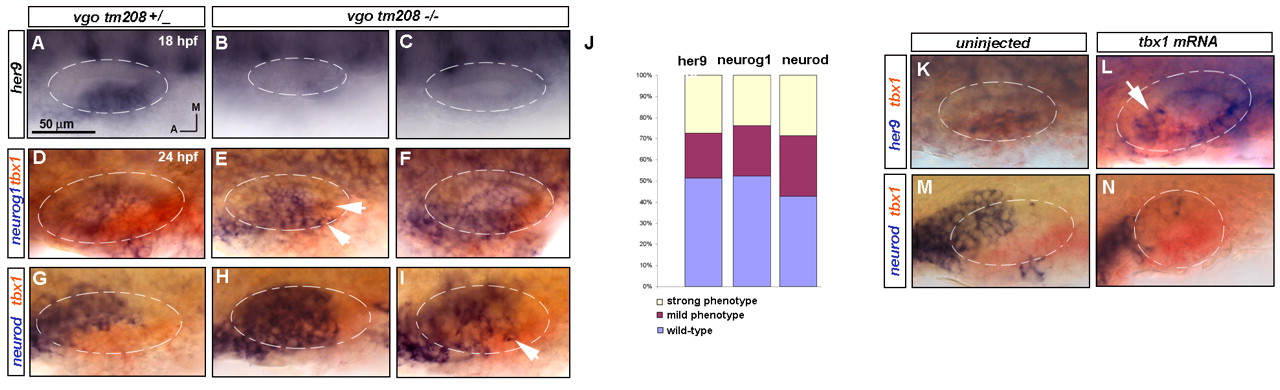

Fig. 5 tbx1 is genetically upstream of her9. (A-C) Expression of her9 in 18 hpf zebrafish embryos from heterozygotic vgotm208 crosses. (D-I) Double in situ hybridization for tbx1 (red) and neurog1 (blue, D-F) or neurod (blue, G-I) in 24 hpf embryos from heterozygotic vgotm208 crosses. Arrows point to ectopic proneural expression. Two examples of vgotm208 mutants are given for each gene in A-I. (J) Proportion of descendants from heterozygotic crosses showing a strong phenotype (complete abrogation of her9 expression, substantial expansion of neurog1 and neurod), mild phenotype or wild-type phenotype at 24 hpf. (K,L) Double in situ hybridization for tbx1 (red) and her9 (blue) shows ectopic expression of her9 (arrow) after injection of capped tbx1 mRNA. (M,N) Double in situ hybridization for tbx1 (red) and neurod (blue) at 24 hpf shows downregulation of neurod after overexpression of capped tbx1 mRNA. All images are at the same magnification.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
