Fig. 6
|
Figure Caption

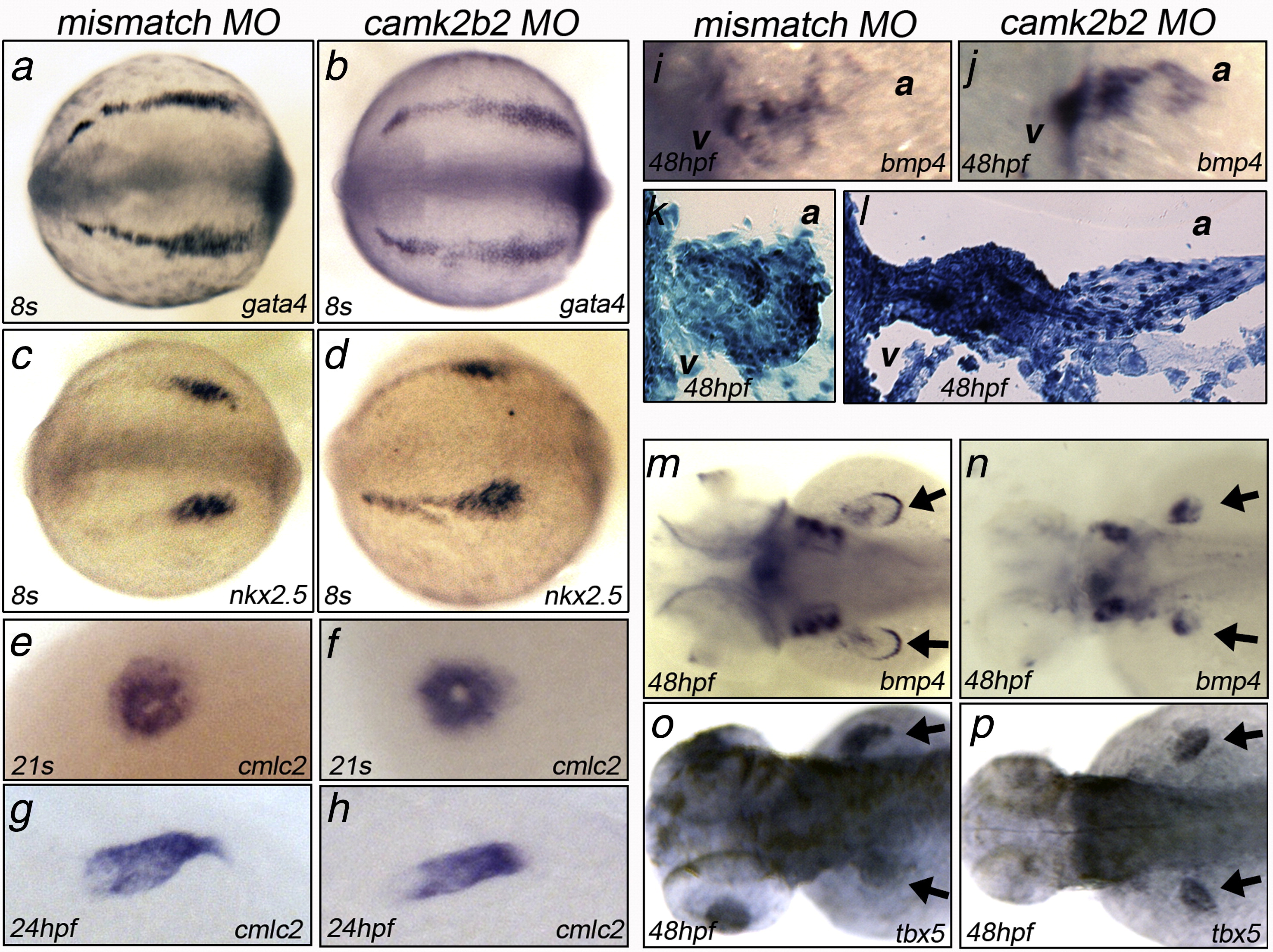

Fig. 6 Early genes responsible for heart and fin specification are expressed in camk2b2 morphants. Gata4 and nkx2.5 expression at the 8-somite stage (a–d), cmlc2 at 21s (e, f) and 24 hpf (g, h), bmp4 at 48 hpf (i, j, m, n) and tbx5 at 48 hpf (o, p) were determined by in situ hybridization for embryos injected with 5 ng camk2 mismatch MO or 2 ng camk2b2 MO. Thin sections of cardiac tissue from mismatch or camk2b2 morphants were stained with methylene blue (k, l). Anterior is to the left in all views.
