Fig. 4

ID
ZDB-IMAGE-080401-27
Genes
Source
Figures for Nakayama et al., 2008
Figure Caption

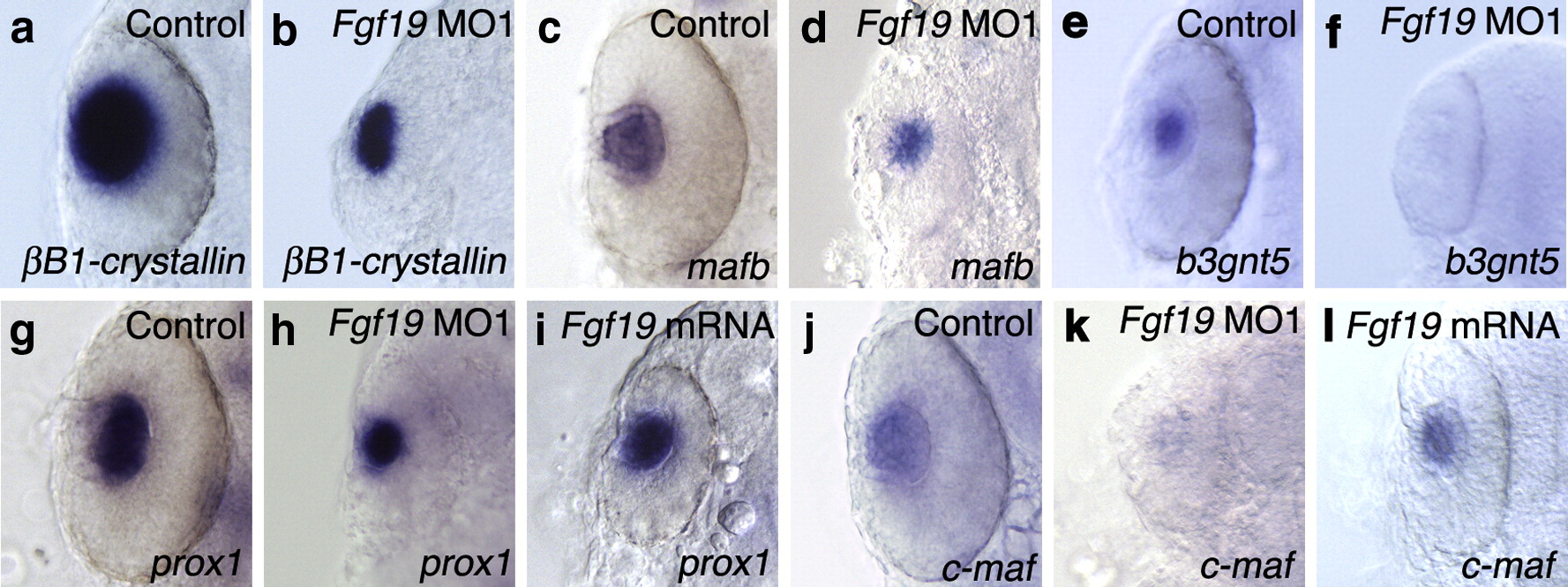

Fig. 4 Expression of lens-specific marker genes at 24 hpf. Embryos were injected with control MO (a, c, e, g, j), Fgf19 MO1 (b, d, f, h, k) and Fgf19 mRNA (i, l). (a–d) The expression of βB1-crystallin (a, b) and mafb (c, d) was detected in the lens region of control MO-injected and Fgf19 MO1-injected embryos, while the expression domains in Fgf19 MO1-injected embryos were smaller than those in control embryos. (e, f) On the other hand, the expression of b3gnt5 was not detected in the lens region of Fgf19 MO1-injected embryos. (g, h) The expression of prox1 was detected in the lens region of control MO-injected and Fgf19 MO1-injected embryos. (i) In Fgf19 mRNA-injected embryos, the ectopic expression of prox1 was not detected. (j, k) In Fgf19 MO1-injected embryos, c-maf expression was lost in the lens fiber cells. (l) The ectopic expression of c-maf was not detected in Fgf19 mRNA-injected embryos. Dorsal views with anterior to the top.
