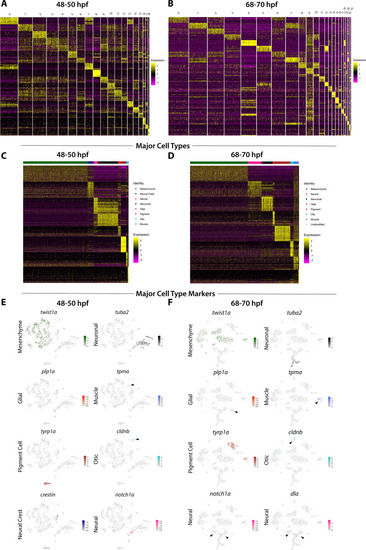

Figure 1—figure supplement 2.

(A,B) Heatmap summarizing the top 10 genes significantly expressed in each cluster, for 48–50 and 68–70 hpf, respectively. Relative expression levels within each cluster is summarized within the color key, where yellow to magenta color indicates high to low gene expression levels. (C,D) Heatmaps summarizing the top 30 genes significantly expressed among the major cell types identified among sox10:GFP⁺ cells, for 48–50 and 68–70 hpf, respectively. Relative expression levels within each major cell type cluster is summarized within the color key, where yellow to magenta color indicates high to low gene expression levels. (E,F) tSNE plots depicting the major cell type classification representative gene marker for each major cell type category, for 48–50 and 68–70 hpf, respectively. Relative expression levels are summarized within the color keys, where color intensity is proportional to expression level of each gene depicted.
