Fig. 3

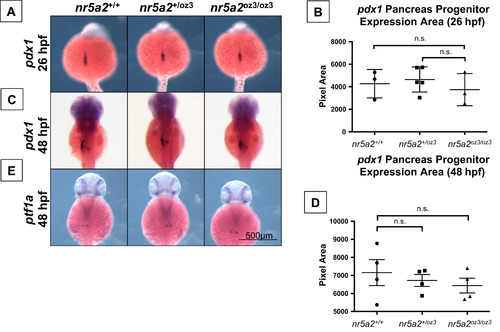

Nr5a2 is not required for the formation of pdx1 and ptf1a pancreas progenitors. (A) The area of pdx1 pancreas progenitors is similar across nr5a2^+/+, nr5a2^+/oz3, and nr5a2^oz3/oz3 embryos at 26 hpf. (B) No significant differences in pdx1 progenitor population size identified by a quantification of pdx1 expression area by genotype (p>3 per group; for nr5a2^+/+vs. nr5a2^+/oz3, p=0.6746; for nr5a2^+/+vs. nr5a2^oz3/oz3, p=0.6606; unpaired t-test). (C) pdx1 pancreas progenitors are formed at 48 hpf in nr5a2^+/oz3 and nr5a2^oz3/oz3 embryos; however, subtle difference in pdx1 progenitor budding is noted with variable penetrance across the nr5a2^oz3/oz3 population. (D) No significant differences in the size of the pdx1 pancreas progenitor pool were observed by quantification of expression area at 48 hpf (n>3 per group; for nr5a2^+/+vs. nr5a2^+/oz3, p=0.6024; for nr5a2^+/+vs. nr5a2^oz3/oz3, p=0.4178; unpaired t-test). (E) ptf1a progenitors are formed in nr5a2^+/oz3 and nr5a2^oz3/oz3 embryos by 48 hpf.

Expression Data

Genes:	pdx1 ptf1a
Fish:	WT nr5a2^oz3/oz3 nr5a2^oz3/+
Anatomical Term:	pancreatic bud
Stage Range:	Prim-5 to Long-pec

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 418(1), Nissim, S., Weeksb, O., Talbot, J.C., Hedgepeth, J.W., Wucherpfennig, J., Schatzman-Bone, S., Swinburne, I., Cortes, M., Alexa, K., Megason, S., North, T.E., Amacher, S.L., Goessling, W., Iterative use of nuclear receptor Nr5a2 regulates multiple stages of liver and pancreas development, 108-23, Copyright (2016) with permission from Elsevier. Full text @ Dev. Biol.
