FIGURE

Fig. 1

ID

ZDB-FIG-101012-15

Publication

Mei et al., 2010 - Mtmr8 is essential for vasculature development in zebrafish embryos

Other Figures

All Figure Page

Back to All Figure Page

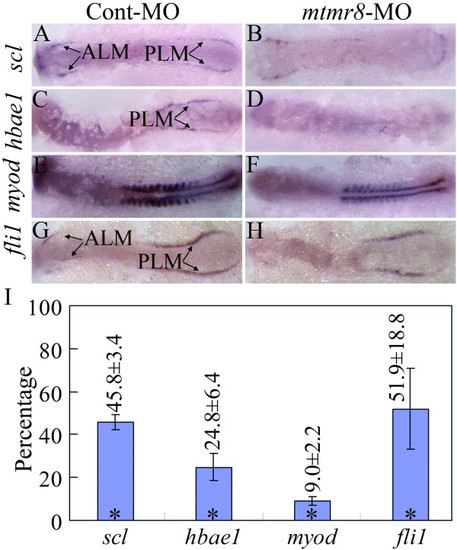

Fig. 1

Early marker genes for hemato-vascular progenitors, such as early angioblast/hematopoietic mesoderm marker genes scl (A, B) and hbae1(C, D), somitic mesoderm marker gene myod(E, F), and endothelial cell marker gene fli1(G, H), are affected in lateral mesoderm of mtmr8 knockdown embryos during somitogenesis. All pictures were taken from 12 somites stage embryos. Panels are flat-mounted dorsal views (anterior toward the left). ALM (anterior lateral mesoderm) and PLM (posterior lateral mesoderm) are indicated by arrows. (I) Percentages of scl, hbae1, myod and fli1 expression of mtmr8 morphant embryos relative to Cont-MO embryos revealed by Q-RT-PCR. * indicates significance of p < 0.05.

Expression Data

Genes:	fli1 hbae1.1 myod1 tal1
Fish:	AB AB + MO1-mtmr8
Knockdown Reagent:	MO1-mtmr8
Anatomical Terms:	anterior lateral mesoderm posterior lateral mesoderm somite
Stage:	10-13 somites

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ BMC Dev. Biol.
