FIGURE

Fig. 4

ID

ZDB-FIG-100628-37

Publication

Vaccari et al., 2010 - prep1.2 and aldh1a2 participate to a positive loop required for branchial arches development in zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Fig. 4

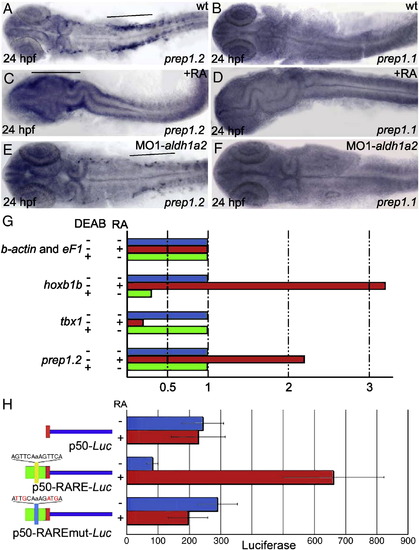

prep1.2 expression is positively regulated by retinoic acid. A, C and E: In situ hybridization experiments showing that prep1.2 mRNA in able to respond to RA treatment. In RA-treated embryos analyzed at 24 hpf the prep1.2 mRNA signal (blue, highlighted with a bar) is anteriorized and its intensity is significantly increased (C). In MO1-aldh1a2 injected embryos, prep1.2 expression is reduced, especially in the prospective branchial region (bar) (E). prep1.1 expression does not respond to RA (D) and is unaffected in aldh1a2 morphant embryos (F). G: qRT-PCR assay of prep1.2, hoxb1b and tbx1 expression in RA- and DEAB-treated embryos analyzed at 24 hpf. prep1.2 and hoxb1b are about 3-fold upregulated, while tbx1 is downregulated, in embryos treated with RA. DEAB treatment does not affect the expression of prep1.2 and tbx1 while hoxb1b is downregulated. The expression levels are compared with the housekeeping genes b-actin and eF1. H: Reporter analysis of the prep1.2 RARE. The basal promoter used in this study (p50-Luc) is unresponsive to RA. The 0.5 kbp intron-1 fragment bearing the putative prep1.2 RARE (p50-RARE-Luc) represses the basal promoter activity but confers a 7 fold RA-responsiveness. Mutagenesis of the RARE sequence of the 0.5 kbp intron-1 fragment restores the basal promoter activity.

Expression Data

Genes:	pknox1.1 pknox1.2
Fish:	WT WT + MO1-aldh1a2
Knockdown Reagent:	MO1-aldh1a2
Anatomical Terms:	pharyngeal arch 3-7 whole organism
Stage:	Prim-5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT + MO1-aldh1a2
Knockdown Reagent:	MO1-aldh1a2
Observed In:	pharyngeal arch 3-7 retinoic acid receptor signaling pathway
Stage:	Prim-5

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 343(1-2), Vaccari, E., Deflorian, G., Bernardi, E., Pauls, S., Tiso, N., Bortolussi, M., and Argenton, F., prep1.2 and aldh1a2 participate to a positive loop required for branchial arches development in zebrafish, 94-103, Copyright (2010) with permission from Elsevier. Full text @ Dev. Biol.
