Fig. 1

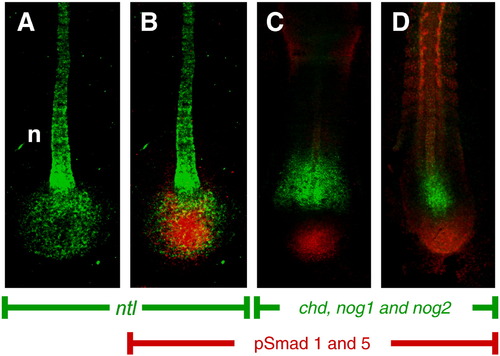

Bmp signaling is tightly regulated in the tailbud during early somitogenesis. (A, B) Bmp signaling is active in the mesodermal progenitor zone. Expression of no tail is shown by FISH in green in 3-somite stage embryos marking both the mesodermal progenitor zone and the notochord (n). Bmp signaling is indicated by antibody staining for phosphorylated Smad proteins (red in B–D). Bmp inhibitors are expressed just anterior to the activated Smad zone. The Bmp inhibitors chordin, noggin1 and noggin2 are shown by FISH in green and the Smad staining is shown in red in 3-somite (C) and 12-somite (D) embryos. All embryos are shown from a dorsal view with anterior to the top.

Expression Data

Genes:	chrd nog1 nog2 tbxta
Antibody:	Ab1-smad
Fish:	WT
Anatomical Terms:	notochord segmental plate tail bud tail bud presumptive mesoderm
Stage Range:	1-4 somites to 10-13 somites
