Fig 6

ID

ZDB-IMAGE-220319-55

Genes

Antibodies

Publication

Liu et al., 2022 - Rod genesis driven by mafba in an nrl knockout zebrafish model with altered photoreceptor composition and progressive retinal degeneration

All Figures

Figures for Liu et al., 2022


Figure Caption

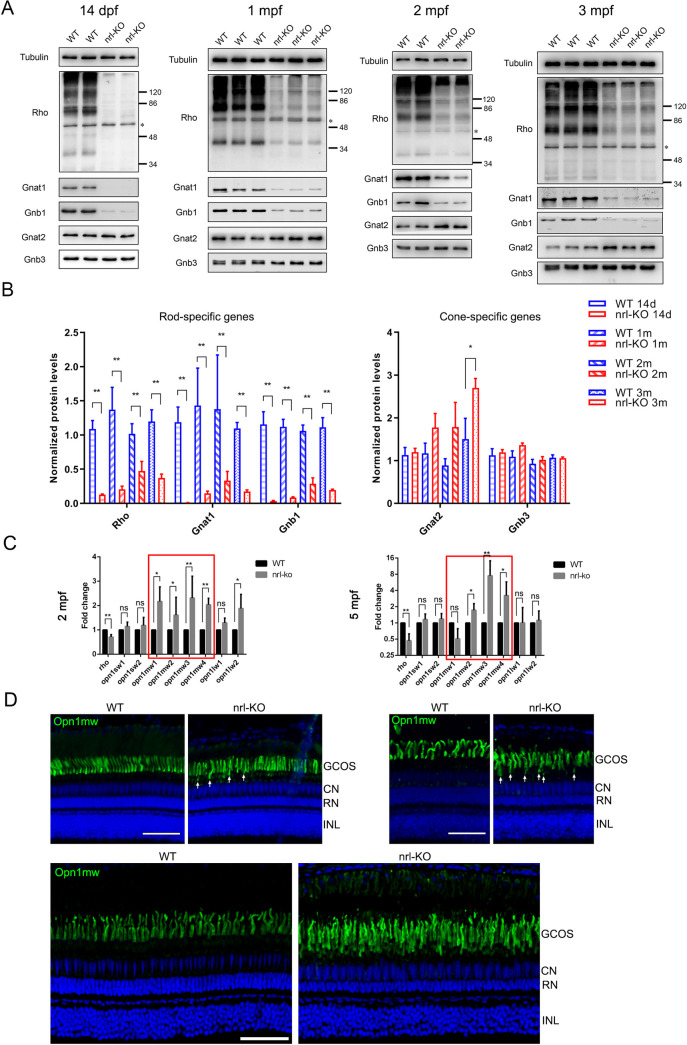

Fig 6 Down-regulation of rod-specific genes and increased number of green cones in adult <italic toggle='yes'>nrl</italic>-KO zebrafish.

(A) The protein levels of rod-specific (rho, gnat1, and gnb1) and cone-specific (gnat2 and gnb3) genes in WT and nrl-KO retinas from 14 dpf to 3 mpf were evaluated using western blotting. Tubulin was used as a loading control. The asterisk indicates a non-specific band. (B) Quantitative analysis of the protein levels of rod- and cone-specific genes based on at least three independent experiments. WT samples, blue color; nrl-KO samples, red color. Data from different ages are arranged from left to right (from 14 dpf to 3 mpf) and indicated by different fill patterns. The data are shown as mean with SD (n = 3). *, p < 0.05. **, p < 0.01. (C) The mRNA levels of the rod and cone opsins in the WT and nrl-KO retinas at 2 mpf and 5 mpf were measured using qPCR. The data are shown as mean with SD (n = 3). ns, non-significant; *, p < 0.05; **, p < 0.01. (D) Detection of green-cones on retinal sections of WT and nrl-KO zebrafish at 2 mpf, 3 mpf, and 13 mpf by immunostaining using the anti-Opn1mw antibody. The dorsal retinal regions are shown. White arrows indicate the mislocalized green-cone outer segments. GCOS, green-cone outer segments; CN, cone nuclear layer; RN, rod nuclear layer; INL, inner nuclear layer. Scale bars: 50 μm.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ PLoS Genet.
