Fig. 5
|
Figure Caption
Fig. 5

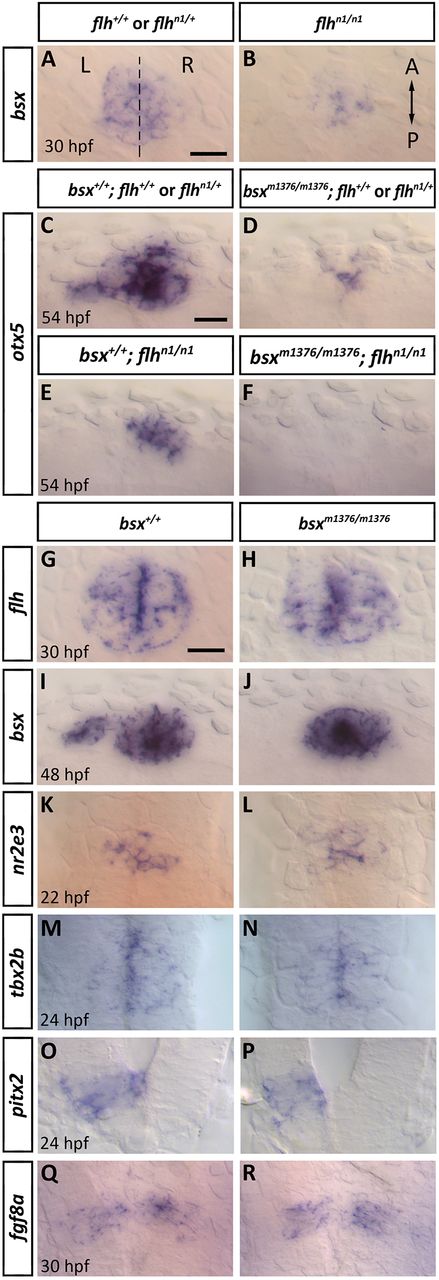

Epistatic positioning of bsx in the PC transcriptional network. (A-R) Expression of mRNAs encoding PC transcription factors or signals analyzed by WISH at indicated stages. Genotypes of embryos were wild type, single, or double mutant for bsx and flh, as indicated at top. The genes for which expression was analyzed are given on the left. Anterior is to the top of the images. Analyzed embryos n≥3 for wild type, n≥4 for bsx or flh single mutants and n≥2 for bsx/flh double mutants. Scale bars: 20 µm.
