Fig. 5
- ID
- ZDB-IMAGE-160727-40
- Genes
- Publication
- Maulding et al., 2014 - Mesodermal Fgf10b cooperates with other Fgfs during induction of otic and epibranchial placodes in zebrafish
- All Figures
- Figures for Maulding et al., 2014
|
Figure Caption
Fig. 5

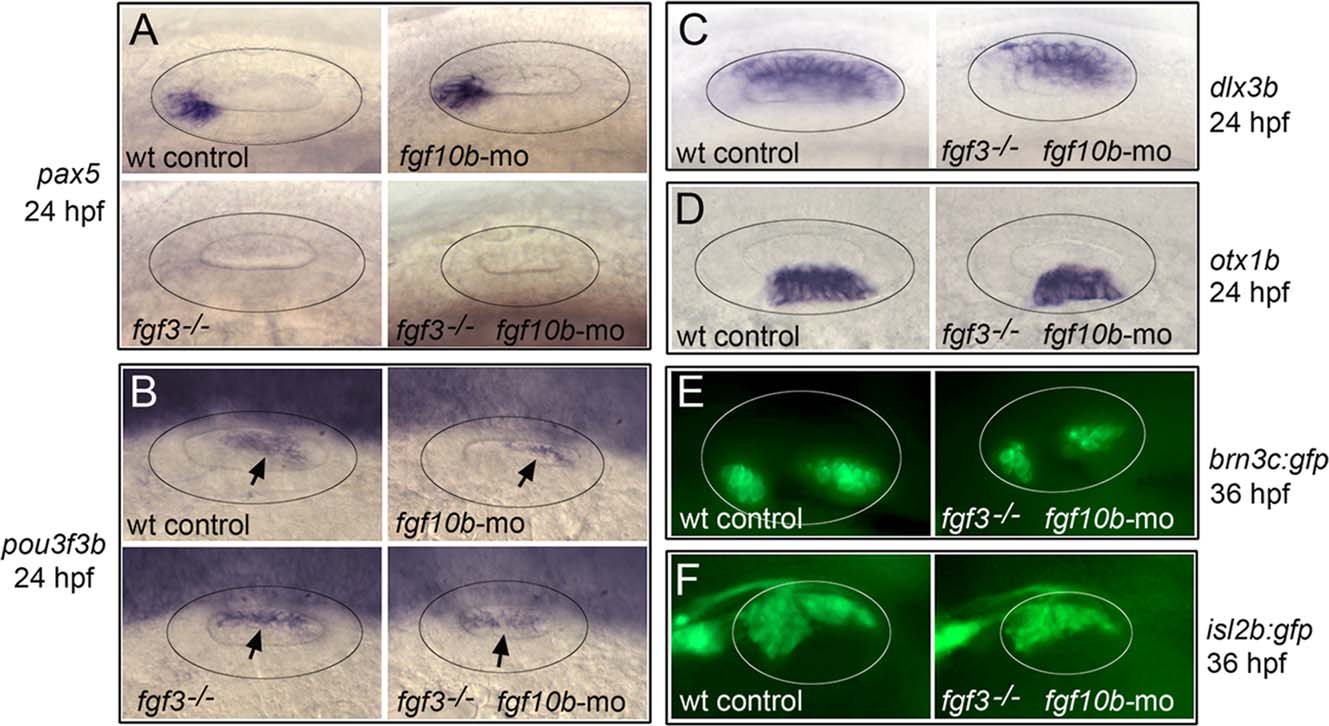

Effects of fgf10b knockdown on otic vesicle patterning. A-F: Lateral view (anterior to the left) of the otic vesicle (circled) at 24 hpf (A-D) and 36 hpf (E,F) labeled for the indicated genes. Arrows in (B) indicate the otic domain of pou3f3b.
