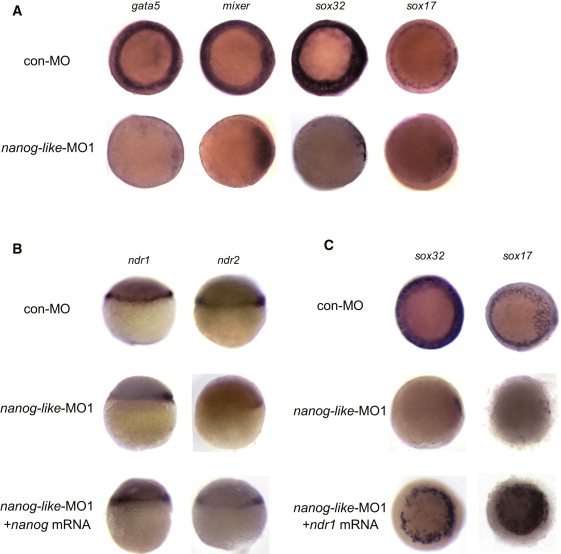

Fig. 2 Nanog-like Regulates Endoderm Formation by Activating Nodal
(A) nanog-like knockdown impairs ventrolateral endoderm formation. The endoderm genes mixer, gata5, sox32, and sox17 are absent at the ventrolateral margin in nanog-like-MO1-injected embryos. All views are shown as an animal view with the dorsal side to the right.
(B) ndr1 and ndr2 expression is restricted to the dorsal area in the nanog-like-MO1-injected embryo; ventrolateral expression of both genes can be restored by coinjection of nanog-like mRNA. All views are lateral with the presumptive dorsal side to the right.
(C) Ventrolateral sox32 and sox17 expression can be rescued by ndr1 mRNA. All views are shown as an animal view with the presumptive dorsal side to the right.
