ZFIN ID: ZDB-IMAGE-101101-16
Figures for Kwon et al., 2009

Genes:

Figure Caption/Comments:

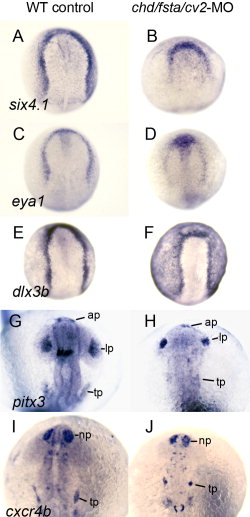

Fig. 3 Formation of preplacodal ectoderm and various cranial placodes in chd/fsta/cv2 triple-morphants. A, B:six4.1 expression at 10.5 hpf in a wild-type control (A) and chd/fsta/cv2 triple-morphant (B). C, D:eya1 expression at 10.5 hpf in a wild-type control (C) and chd/fsta/cv2 triple-morphant (D). E, F:dlx3b expression at 10.5 hpf in a wild-type control (E) and chd/fsta/cv2 triple-morphant (F). G, H:pitx3 expression at 19 hpf in a wild-type control (G) and chd/fsta/cv2 triple-morphant (H). The anterior pituitary (ap), lens placode (lp), and trigeminal placode (tp) are indicated. I, J:cxcr4b expression at 19 hpf in a wild-type control (I) and chd/fsta/cv2 triple-morphant (J). The nasal placode (np) and trigeminal placode (tp) are indicated.

Figure Data:
Acknowledgments:
ZFIN wishes to thank the journal for permission to reproduce figures from this article. Please note that this material may be protected by copyright.
