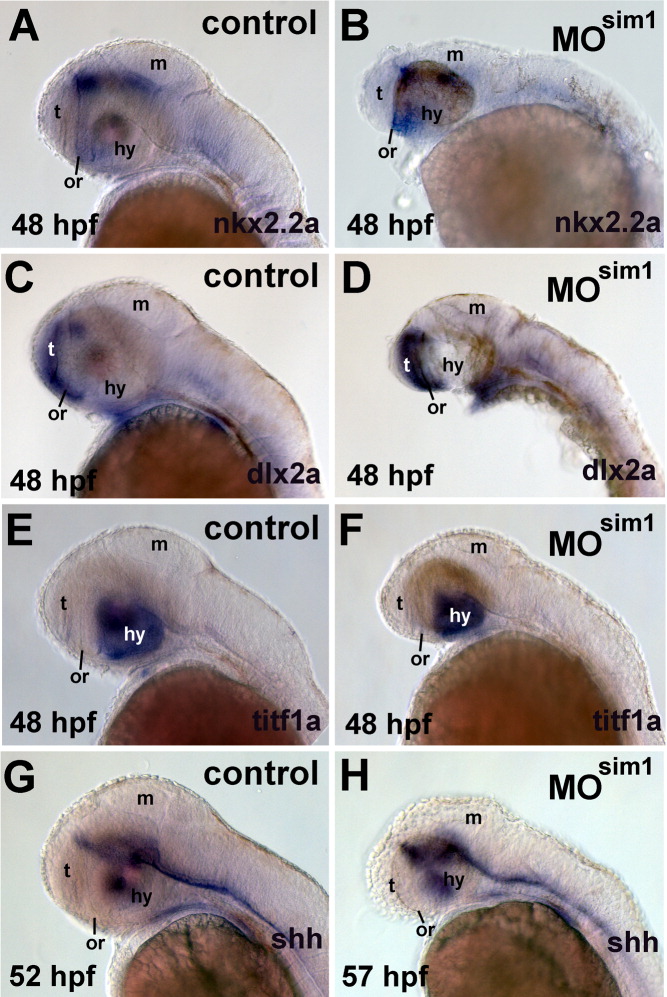

Fig. 7 Expression patterns of nkx2.2a, dlx2a, titf1a, and shh are unchanged in sim1 morphants. Nkx2.2a, dlx2a, titf1a, and shh mRNA was detected by ISHH in embryos that were injected with Morpholino oligonucleotides (MO). A,C,E,G: Embryos injected with 0.5 ng of a 4-base mismatch "control" sim1 MO. B,D,F,H: Embryos injected with 0.5 ng of sim1 MO (e.g., sim1 morphants, MO^sim1). Dorsal is up and anterior to the left. The age of the embryos is indicated on each panel in hours post-fertilization (hpf). The probes are indicated on each panel. The location of the optic recess (or) is indicated by a black bar. t, telencephalon; m, midbrain; hy, hypothalamus.
