FIGURE

Fig. 2

ID

ZDB-FIG-260924-35

Publication

Torres-Perez et al., 2026 - Disrupting fzd9b in Zebrafish Recapitulates Stress- and Anxiety-Like Behaviours Relevant to Williams Syndrome

Other Figures

All Figure Page

Back to All Figure Page

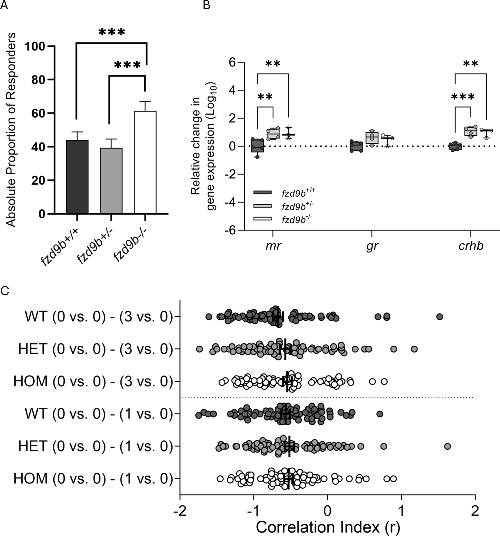

Fig. 2

Disrupting fzd9b leads to delayed habituation to acoustic startle and altered expression of HPI-axis-related genes. A) Proportion of responders across all acoustic stimuli in 5 dpf larvae: for fzd9b^+/+ (N = 45), fzd9b^+/- (N = 91), and fzd9b^−/− (N = 43); data show mean ± SEM. B) Relative expression (log₁₀ scale) of HPI axis genes (mr, gr and crhb) measured by qPCR in pooled 5 dpf larvae (N = 5–3 per genotype, 16 larvae per pool); graphs show individual values and mean ± SEM. C) Social preferences correlation index (r) in juvenile zebrafish (20–22 dpf) for all contrasts tested (0 vs. 0, vs. 0 vs. 1 or vs. 0 vs. 3) in fzd9b^+/+ (dark grey), fzd9b^+/- (light grey) or fzd9b^−/− (white); each point represents an individual; bars show mean ± SEM. In all cases: ** p < 0.01, *** p < 0.001, **** p < 0.000 vs. corresponding pairwise comparison

Expression Data

Genes:	crhb nr3c1 nr3c2
Fish:	TU fzd9b^qm6/qm6 (TU) fzd9b^qm6/+ (TU)
Anatomical Term:	whole organism
Stage:	Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	fzd9b^qm6/qm6 (TU) fzd9b^qm6/+ (TU)
Condition:	vibration, visible light
Observed In:	habituation social behavior whole organism
Stage Range:	Day 5 to Days 14-20

Phenotype Detail
