Fig. 3

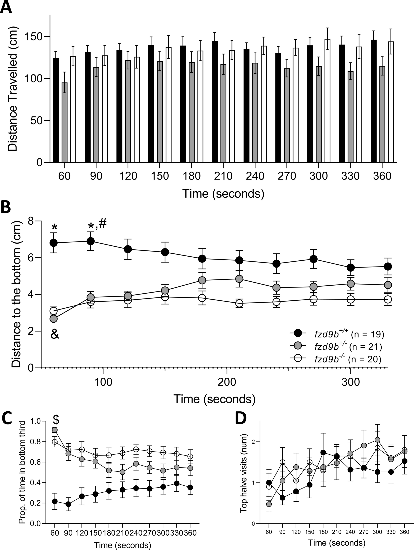

Novel tank diving assay reveals altered anxiety-like behaviour in fzd9b mutants. A) Total distance travelled by adult fish from the three genotypes (fzd9b^+/+, fzd9b^+/-, fzd9b^−/−) over time in the assay, shown in 30-s time bins. B) Distance to the tank bottom over time for each genotype; sample sizes (n) are indicated in the panel. C) Proportion of time spent in the bottom third of the tank. D) Number of visits to the top half of the tank. Graphs show mean ± SEM. * p < 0.0 5 vs. 9th time point from same genotype (WT); # p < 0.0 5 vs. 10th time point from same genotype (WT); # p < 0.0 5 vs. 4th time point until the last, from same genotype (HET); & p < 0.0 5 vs. 4th time point until the last, from same genotype (HET); $ p < 0.0 5 vs. 5th time point until 7th and from 9th until the last, from same genotype (HET)

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	fzd9b^qm6/qm6 (TU) fzd9b^qm6/+ (TU)
Observed In:	locomotory exploration behavior
Stage:	Adult

Phenotype Detail
