Figure 7

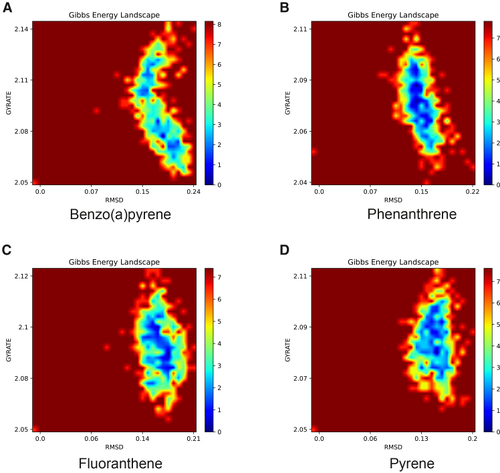

Free energy landscape (FEL) of PARP1 binding with four PAHs

(A–D) Shown in order: benzo[a]pyrene, phenanthrene, fluoranthene, and pyrene. RMSD (root-mean-square deviation) measures the stability of a structure during simulation. Gyrate computes the radius of gyration of a molecule and the radii of gyration about the x, y, and z axes. GYRATE calculates the radius of gyration (Rg) of the group of atoms, including all effects due to atoms passing through periodic boundaries. A stable folded protein maintains a steady Rg value.
