Fig. 3

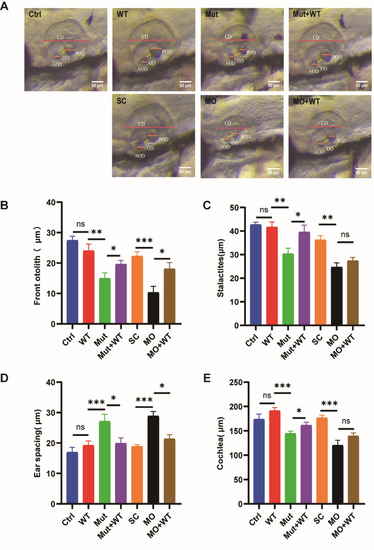

Ear structure of zebrafish after GJB2 c.109G > A mutation and knockdown. A. Schematic diagram of zebrafish ear structure; Use Image J software to measure anterior otolith (B), posterior otolith (C), ear spacing (D) and cochlear diameter (E) of zebrafish. n ≥ 10, CD represents cochlea, OD represents interaural distance, AOD represents anterior otolith, POD represents posterior otolith. Each column and bar represent the mean ± SEM. All data were statistically analyzed by one-way ANOVA, * p < 0.05 indicates a significant difference, ** p < 0.01 indicates a very significant difference, and *** p < 0.001 indicates an extremely significant difference.
