FIGURE

Fig. 3.

ID

ZDB-FIG-251230-87

Publication

Mensching et al., 2025 - Cohesin protein Smc3 influences kinocilial structure and function

Other Figures

All Figure Page

Back to All Figure Page

Fig. 3.

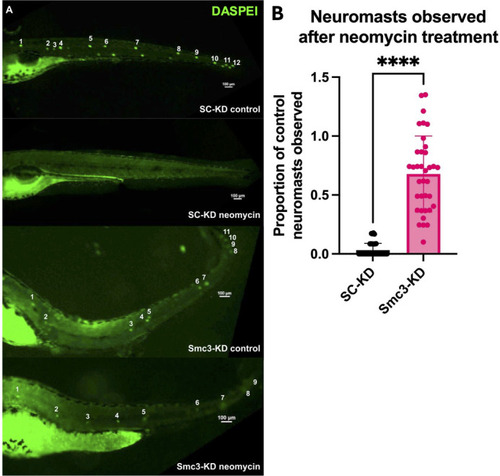

Smc3 protein depletion protects lateral line neuromasts from neomycin cytotoxicity. (A) Representative images of lateral line neuromasts in SC-KD larvae and Smc3-KD larvae at 5 dpf with and without neomycin treatment and stained with 2-[4-(Dimethylamino)styryl]-1-ethylpyridinium iodide (DASPEI). Scale bars: 100 µm. (B) Quantification of neuromast survival after neomycin treatment for each injection type. Neuromast survival was calculated as the ratio of observed neuromasts in each neomycin-treated embryo to the average number of neuromasts visible in control-treated embryos of the same injection type (e.g. SC-KD or Smc3-KD). By this method, ratios greater than 1 may occur if the number of observed neuromasts in a neomycin-treated embryo exceeds the average number of neuromasts observed in the relevant control-treated embryos. Student's t-test, ****P<0.0001, SC-KD n=40, Smc3-KD n=36.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	C32 + MO4-smc3
Condition:	chemical treatment by environment: neomycin
Knockdown Reagent:	MO4-smc3
Observed In:	neuromast
Stage:	Day 5

Phenotype Detail
